Messagepart router

Messagepart router

MessagePartRouter

ConnectPlaza-router which uses the MyESBConnectMessagePartNameRouterStrategy (see Router).

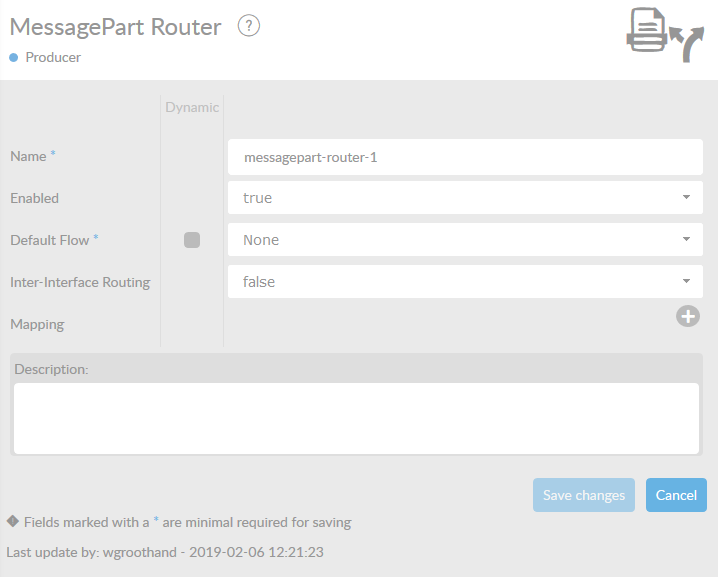

In the table below, you will find an explanation about these properties. All attributes with a ‘*’ are mandatory.

Attribute

Description

Name*

By default, we fill this out with the technical ‘tag’, followed by a serial number. Changing the name is optional.

Enabled

Set this value to true, if you want this producer to be enabled at startup

Default Flow

In case no routing can be found, the message is routed to the Default Flow. By default these messages are deleted.

Mapping

Here you can set a Routing value and refer to a Flow.

By pressing , you create one (or more) extra Routing Mapping rule.

At Routing, you indicate for which returned value of a routerStrategy the message has to be routed.

Description



Description of the specific producer. This is for documentation purposes.

 In the table below, you will find an explanation about the properties of a Mapping rule. All attributes with a ‘*’ are mandatory.

Attribute

Description

Routing value*

Here you enter the expression value on which to route.

Flow Name*

Here you enter the name of the Flow to route to.
