    Mail Listener

    The Mail Listener is used to read from a SMTP destination.

    This listener is a Message-driven listener. This means that the arrival of a message on the destination queue or topic, will activate the consumer. The listeners  output is a ConnectMessage.

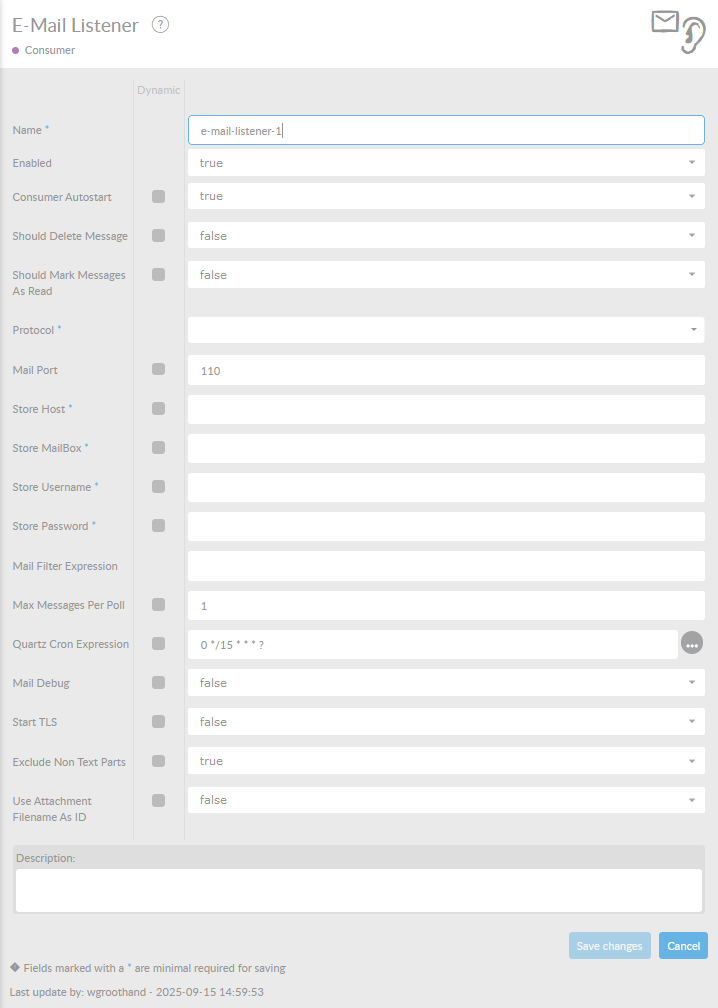

    In the table below, you will find an explanation about these properties. All attributes with a ‘*’ are mandatory.

    All attributes with a ‘***, require at least one of these properties having been set.

    All attributes with a ‘°°°’, require at most one of these properties having been set.




    By default, we fill this out with the technical ‘tag’, followed by a serial number. Changing the name is optional.


    Check this box if you want this consumer to be enabled.

    Consumer Autostart

    Consumer will be started at startup of the interface

    Should Delete Message Set this value on true when you want to delete the message from the emailbox
    Should Mark Messages As Read

    Set this value on true when you want to set the message as Marked as read. The message will remain in your

    Protocol Select one of the next protocols:
    • POP3
    • IMAP
    • POP3S
    • IMAPS
    POP3 Port POP3 Port number
    IMAP Port IMAP Port number
    Store Host Mail server host
    Store MailBox Mailbox to read from. For instance Inbox.
    Store Username User name of the selected mailbox.
    Store Password Password of the user
    Mail Filter Expression Filter expression to filter mail you want out of the selected mail box
    Max Messages Maxiumun amount of messages to read at once
    Quartz Cron Expression

    Definition of the interval this polling consumer will check for messages.
    Format (sec) (min) (hour) (day) (month) (year)

    Mail Debug Set this value to True to add debug information to the interfaces log.
    Start TLS Set this value to True if you have to read messages secure.
    Exclude Non Text Parts Set this value to True to exclude non text parts of the email.


    Description of the specific consumer. This is for documentation purposes.

    Remember to trust the servers certificate in you truststore if using a secure connection.
