Error handling

A word about error handling

When working with the error handling inside ConnectPlaza, you have to be aware how this mechanism works. Otherwise you can get quite unexpected

behaviour. For example, in some cases the disk will fill up quite quickly, with all problems accordingly.

You can define the error handling at two levels, at the interface and at the flow level.

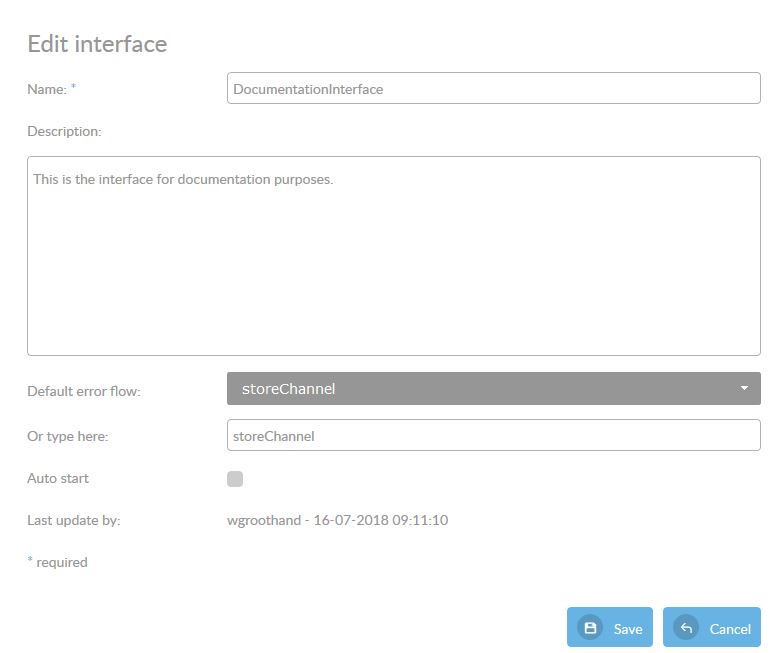

Interface Look

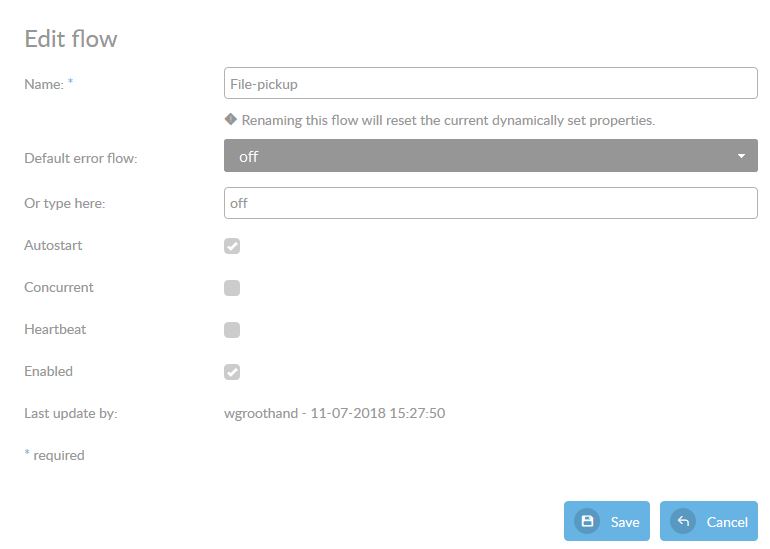

Flow look

In both cases the following two fields determine which error flow is used:

Select the default error flow, storeChannel, of type the error flow of your choice. Both fields are internally the same value.

What is the storeChannel

If you select the default storeChannel as your error flow, the exceptions will be saved as a file in the <connectplaza agent directory>/temp/storechannel directory. These files are exceptions that occur in ConnectPlaza and do not have an error handling created by the user.

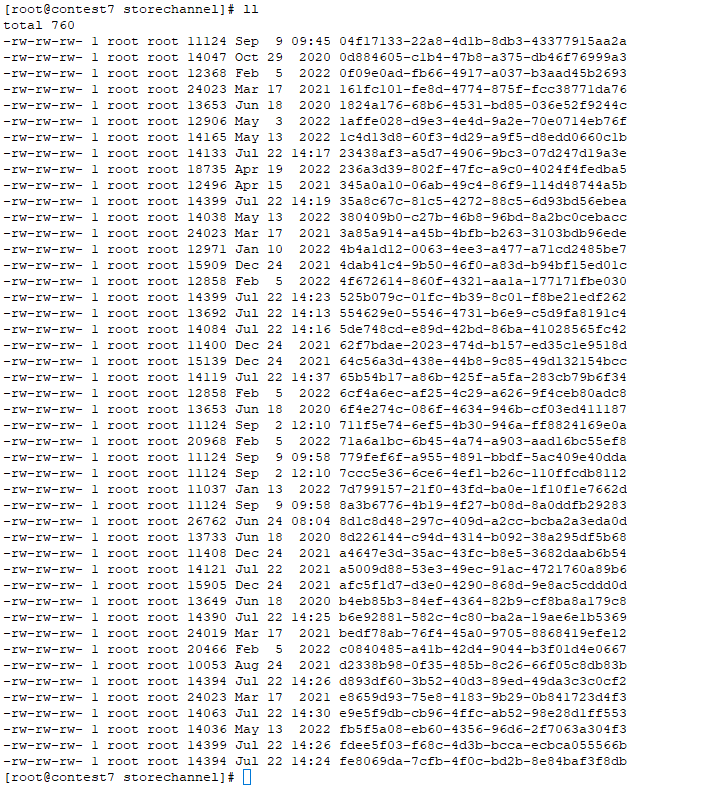

In this directory you will see the files containing the exception.

If you open these files you can read the exception. This looks like this

<ConnectMessage>
<props>
<prop name="myesb-channel-id" value="storeChannel"/>
<prop name="connectmessageTimestamp" value="1658492644733"/>
<prop name="flowstart" value="3075724875528933"/>
<prop name="myesb-adapter-id" value="commonMyESBAdapter"/>
<prop name="id" value="b88a7139-df80-a5c1-b6a3-17385dfbeab2"/>
<prop name="contentType" value="application/x-www-form-urlencoded"/>
<prop name="timestamp" value="1658492644796"/>
<prop name="http_requestMethod" value="POST"/>
<prop name="myesb-component-id" value="storeProxy"/>
<prop name="connectmessageID" value="fe8069da-7cfb-4f0c-bd2b-8e84baf3f8db"/>
<prop name="history" value="connectplaza-deploy-backend-adapter.backend-channel.httpconsumer.HttpInboundGateway,connectplaza-deploy-backend-adapter.backend-channel.httpconsumer.InboundChannel,connectplaza-deploy-backend-adapter.backend-channel.InboundServiceChannel,connectplaza-deploy-backend-adapter.backend-channel.Service,errorRoutingChannel,storeChannel"/>
<prop name="myesb-componenttype-id" value="Consumer"/>
<prop name="http_requestUrl" value="http://test.connectplaza.com:8088/deploy-backend"/>
</props>
<parts>
<part id="msgprt0" index="0" type="TEXT">
<props>
</props>
<content><![CDATA[{{"controller":"DeployController","method":"getAllAgentSpecificBundles","parameters":[{"value":"agenturl","type":"java.lang.String"},{"value":"148","type":"java.lang.String"},{"value":"https://test.connectplaza.com:8444/gw/K9GA-J5R7-5EZI-9SPR-TPSM","type":"java.lang.String"}, {"value":"314","type":"java.lang.String"}],"body":null}=[]}]]></content>
</part>
<part id="exception" index="1" type="OBJECT">
<props>
<prop name="myesb-channel-id" value="backend-channel"/>
<prop name="errorChannel" value="null"/>
<prop name="flowstart" value="null"/>
<prop name="myesb-adapter-id" value="connectplaza-deploy-backend-adapter"/>
<prop name="id" value="null"/>
<prop name="contentType" value="null"/>
<prop name="timestamp" value="null"/>
<prop name="http_requestMethod" value="POST"/>
<prop name="myesb-component-id" value="__myesb-component-id__"/>
<prop name="myesb-componenttype-id" value="Service"/>
<prop name="history" value="null"/>
<prop name="replyChannel" value="null"/>
<prop name="http_requestUrl" value="http://test.connectplaza.com:8088/deploy-backend"/>
</props>
<content><![CDATA[
nested exception is com.fasterxml.jackson.core.JsonParseException: Unexpected character ('{' (code 123)): was expecting double-quote to start field name
 at [Source: (String)"{{"controller":"DeployController","method":"getAllAgentSpecificBundles","parameters":[{"value":"agenturl","type":"java.lang.String"},{"value":"148","type":"java.lang.String"},{"value":"https://test.connectplaza.com:8444/gw/K9GA-J5R7-5EZI-9SPR-TPSM","type":"java.lang.String"}, {"value":"314","type":"java.lang.String"}],"body":null}=[]}"; line: 1, column: 3]
org.springframework.messaging.MessagingException: nested exception is com.fasterxml.jackson.core.JsonParseException: Unexpected character ('{' (code 123)): was expecting double-quote to start field name
 at [Source: (String)"{{"controller":"DeployController","method":"getAllAgentSpecificBundles","parameters":[{"value":"agenturl","type":"java.lang.String"},{"value":"148","type":"java.lang.String"},{"value":"https://test.connectplaza.com:8444/gw/K9GA-J5R7-5EZI-9SPR-TPSM","type":"java.lang.String"}, {"value":"314","type":"java.lang.String"}],"body":null}=[]}"; line: 1, column: 3], failedMessage=GenericMessage [payload=ConnectMessageImpl [parts={exception=ConnectMessagePartObjectImpl [content=org.springframework.messaging.MessagingException, id=exception, partNumber=1, properties=myesb-channel-id=backend-channel,errorChannel=org.springframework.messaging.core.GenericMessagingTemplate$TemporaryReplyChannel@671d3043,flowstart=3075724875528933,myesb-adapter-id=connectplaza-deploy-backend-adapter,id=72e0c209-9f0c-466e-6e9e-db2d309cf3e9,contentType=application/x-www-form-urlencoded,timestamp=1658492644734,http_requestMethod=POST,myesb-component-id=__myesb-component-id__,myesb-componenttype-id=Service,history=connectplaza-deploy-backend-adapter.backend-channel.httpconsumer.HttpInboundGateway,connectplaza-deploy-backend-adapter.backend-channel.httpconsumer.InboundChannel,connectplaza-deploy-backend-adapter.backend-channel.InboundServiceChannel,connectplaza-deploy-backend-adapter.backend-channel.Service,replyChannel=org.springframework.messaging.core.GenericMessagingTemplate$TemporaryReplyChannel@671d3043,http_requestUrl=http://test.connectplaza.com:8088/deploy-backend,], msgprt0=ConnectMessagePartStringImpl [content={{"controller":"DeployController","method":"getAllAgentSpecificBundles","parameters":[{"value":"agenturl","type":"java.lang.String"},{"value":"148","type":"java.lang.String"},{"value":"https://test.connectplaza.com:8444/gw/K9GA-J5R7-5EZI-9SPR-TPSM","type":"java.lang.String"}, {"value":"314","type":"java.lang.String"}],"body":null}=[]}, id=msgprt0, partNumber=0, properties=], exception_message=ConnectMessagePartStringImpl [content=Unexpected character ('{' (code 123)): was expecting double-quote to start field name

Etc....

You can delete these files if you need to free up some space. It is wise to check these files before deleting them to check if there are unexpected exceptions and if you can do something about it with you own created error handling.

What you also need to know

What you need to know is that the error handling assigned to the interface is active for all the flows active in this interface. This is not a problem for most cases, but if you have defined the error handling to a flow present in this interface you can have issues if the error handling flow is producing errors. You will get a loop. The error handling flow is assigned the error handling flow for errors, but there are errors......  etc.

Imagine that your error handling flow has an Analyze Wiretap, all the data is written to the Analyze database, and because of the looping effect, this is a serious issue.

In the aforementioned case, it is better to set the error handling at flow level.
