Control user guide
What is ConnectPlaza Control
With ConnectPlaza Control you have real-time technical monitoring capabilities for your complete ConnectPlaza run-time environment. Pro-active support is possible by checking metrics and notiï¬cations of the Agent. You can set thresholds on queue sizes, number of messages per component, etc. When installed a default conï¬guration based on your environment is created. You can modify these settings, by changing Alerting, Message Notiï¬cation, Error Handling, Events, Latency, etc. in the ConnectPlaza Control environment on your ConnectPlaza platform.
To use ConnectPlaza Control a separate license per login is necessary.
First look at ConnectPlaza Control

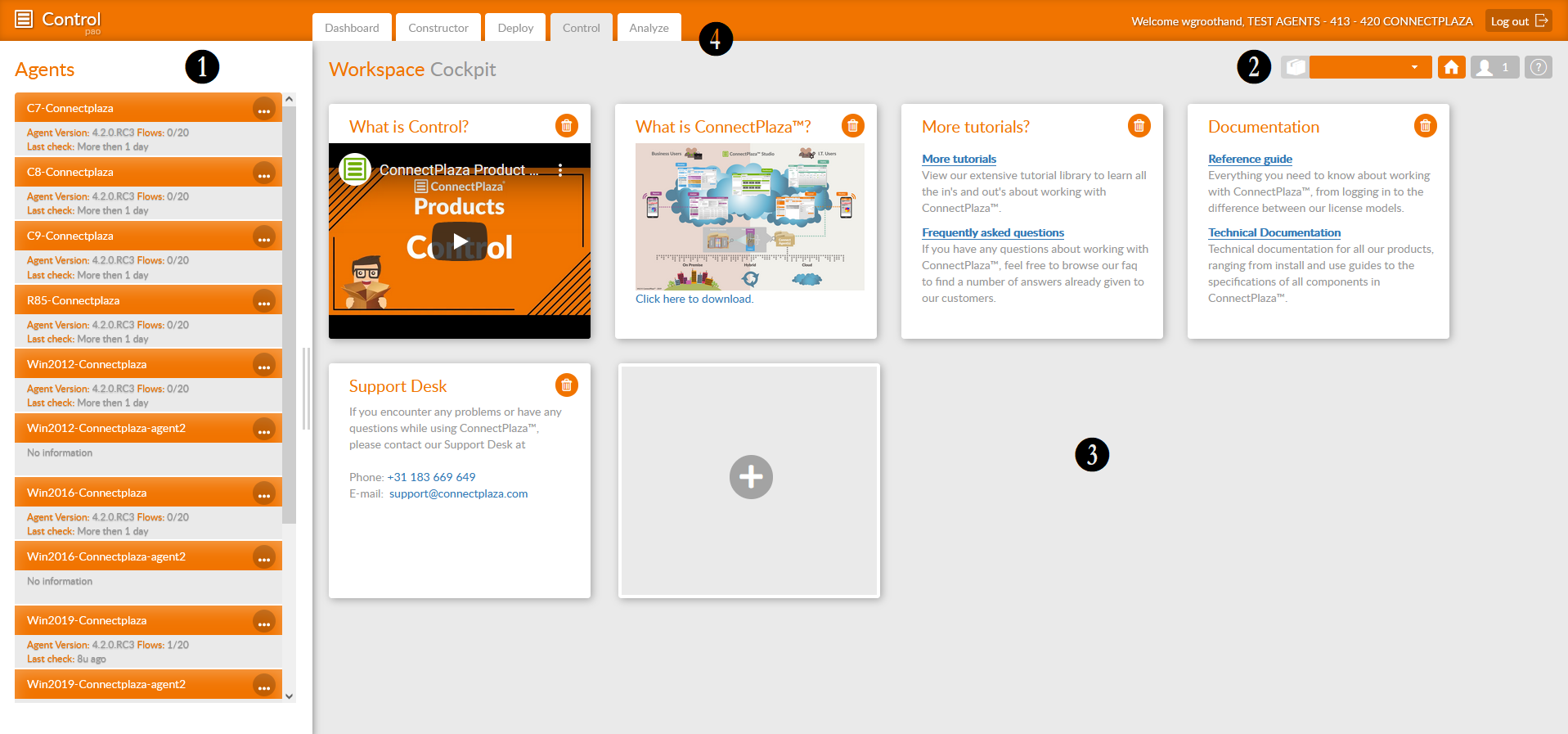

When you logged into your ConnectPlaza environment and you have a valid ConnectPlaza Control license, you will get an extra tab on your dashboard to access ConnectPlaza Control. If you select this tab, you will get the following screen:
This screen is divided in different sections.
| Section | Description |
| 1 | Selection of the agents available |
| 2 |
This is the default button bar, which you can find in almost all of our applications. You can select an agent, go to the home page, select all logged in users, add the tooltips and ask for some help. |
| 3 |

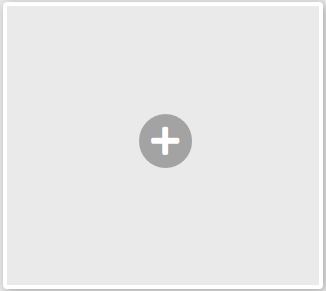

In this section of the screen you see the application widgets. You can add more using the |
| 4 |
Tab area. Here you can select your application. |
Connection to your ConnectAgent

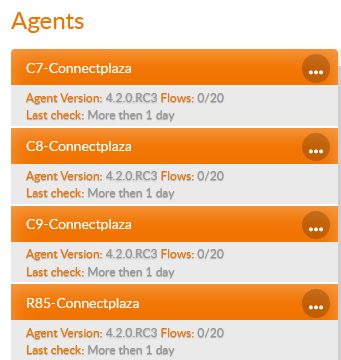

Select your ConnectAgent by using the left list on your screen
Or select the ConnectAgent with the ConnectAgent Drop Down list at to top right of the screen:
Agent details

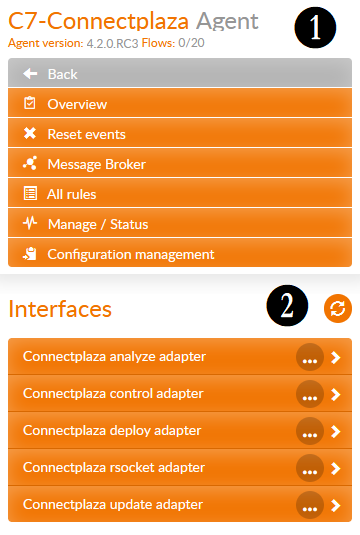

After selecting the ConnectAgent you get an overview of the options you can select for your selected ConnectAgent in your menu-options:
This menu overview is divided into 3 different sections:
| Section | Description |
| 1 | ConnectAgent actions. These actions are focused on the ConnectAgent itself |
| 2 | Interface options. These options are focused on the separate interfaces running on the agent. |
Overview
Using the overview for the ConnectAgent will give you a detailed explanation of the metrics, events, operations and other settings of the ConnectAgent and all of its Interfaces. The whole implementation running in your ConnectAgent will be shown in this overview.

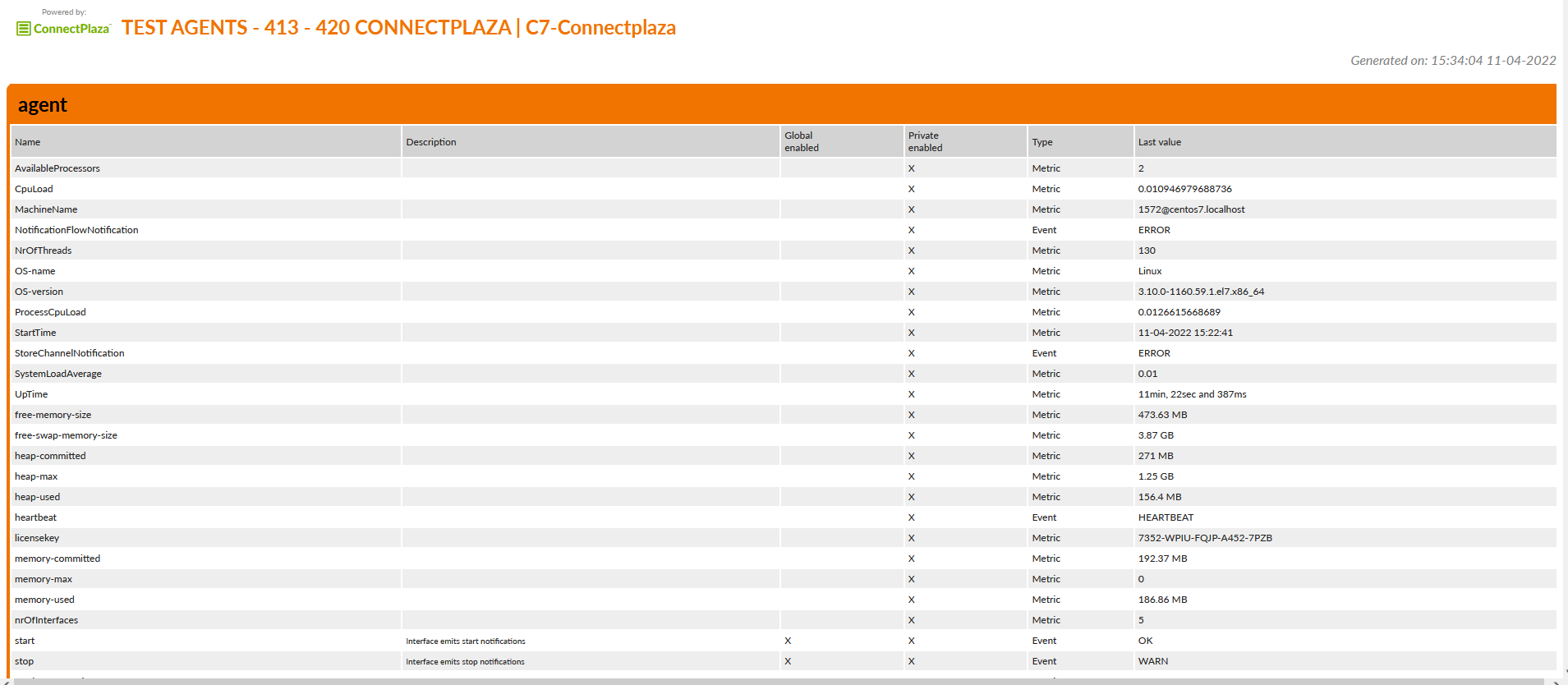

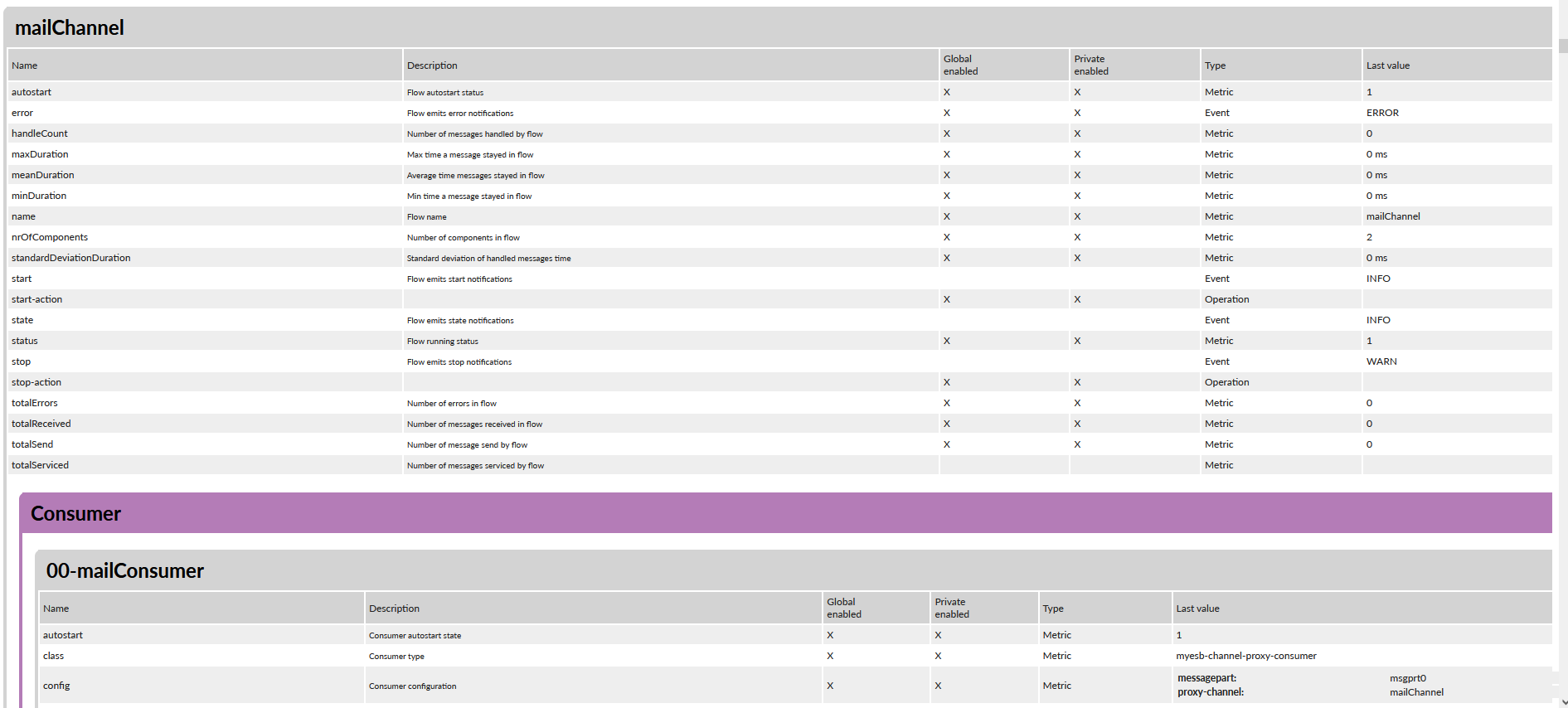

Here the overview of the Agent Metrics and Settings. You can also see Consumer information in this list, like this:
The following information is displayed for every level:
| Name | Description |
| Name | Name of the property |
| Description | Description of the property |
|
Global Enabled |
Is the property Global enabled. This means that this property send out notifications for all events with this specific property. For instance if you want an error if one your interfaces stops. If you want this for ALL your interfaces you use a global enabled property. |
| Private enabled | Is the property only available in the selected phase |
| Type |
Type of the property. You can find the following types:
Metric: this is a value that can be measured. The value is not fixed. |
| Last value | The value of the selected property at the time of creating the document. |
Reset events
This option removes all notifications received during your work with ConnectPlaza Control. This is part because of the fact that the properties and the notifications also are not measured in real time.
So if there has been a restart of the ConnectPlaza Agent, and some of the problems are fixed, you can reset all statuses.
Manage / Status

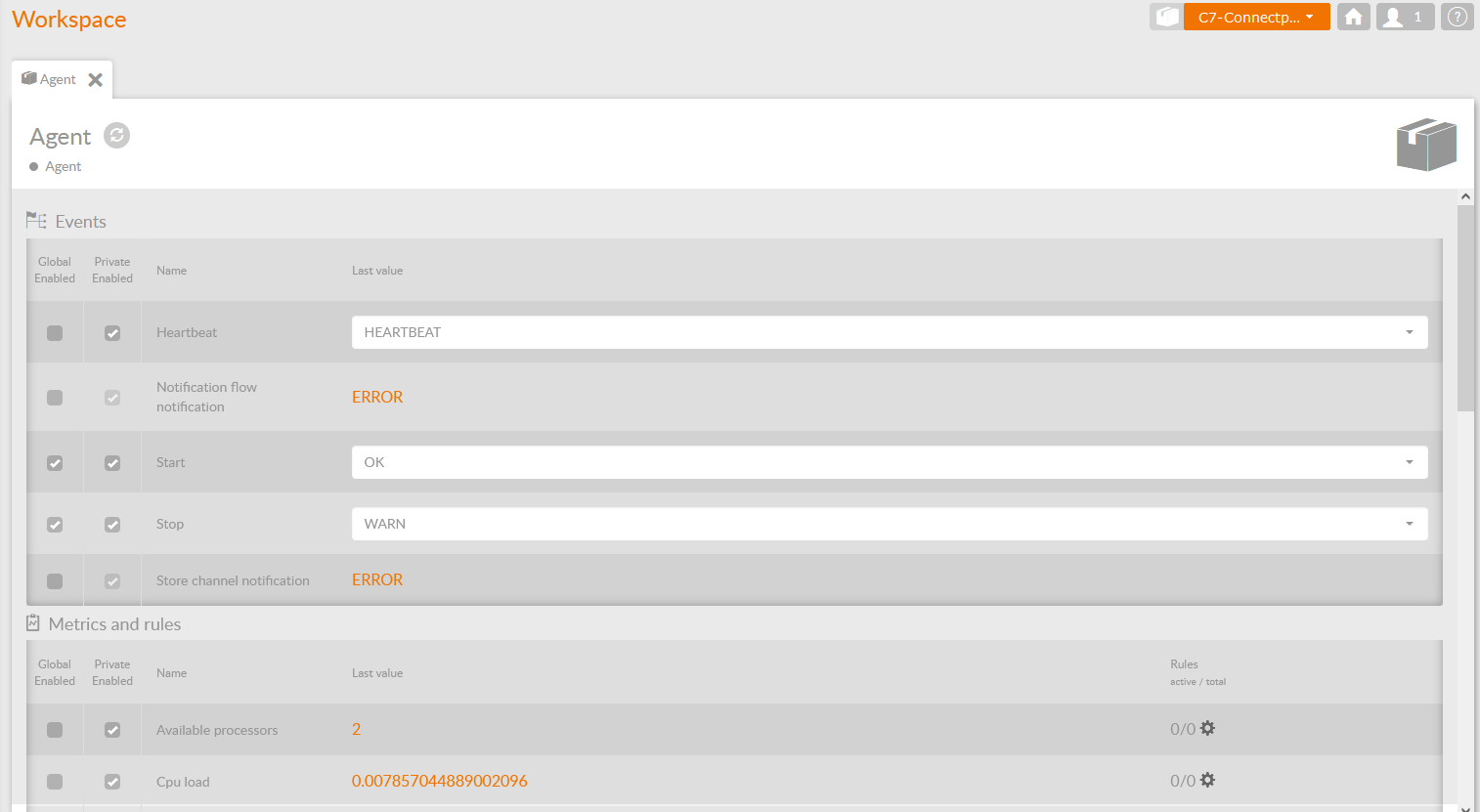

When selecting this option, you get an overview of your ConnectPlaza Agents properties current settings.
At this screen you will find all the properties of your ConnectPlaza Agent and the value at the time you opened this page. These values are not in real time, so if you want to update these values, you have to select the button at the top of the screen.
The screen in divided by property type. For the ConnectAgent, this will be Events and Metrics
You see the following information at this screen:
| Property | Description |
| Global Enabled |
Is the property Global enabled. This means that this property send out notifications for all events with this specific property. For instance if you want an error if one your interfaces stops. If you want this for ALL your interfaces you use a global enabled property. |
| Private enabled | Is the property only available in the selected phase. |
| Name | Name of the property |
| Last value | The value of the selected property at the time of creating the document. |
| Rules Active / Total |
This counter will give you the active rules and the total rules used by ConnectPlaza Monitor. The rules are defined withing ConnectPlaza Control. If you press the |
Interface details
At the Interfaces section of ConnectPlaza Control, you will find your own created interfaces, but also the ConnectPlaza Backend Interfaces delivered by ConnectPlaza.

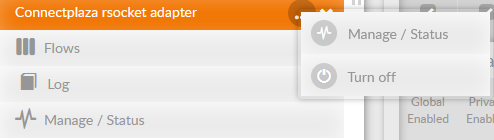

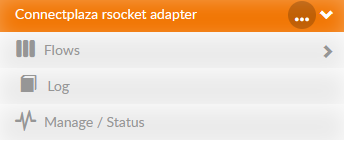

If you open the details of an interface, you will be presented with the following menu options:
Next to the name of the Interface you see a menu option . If you press this icon, you will be presented with some options, concerning the interface:
Manage / Status

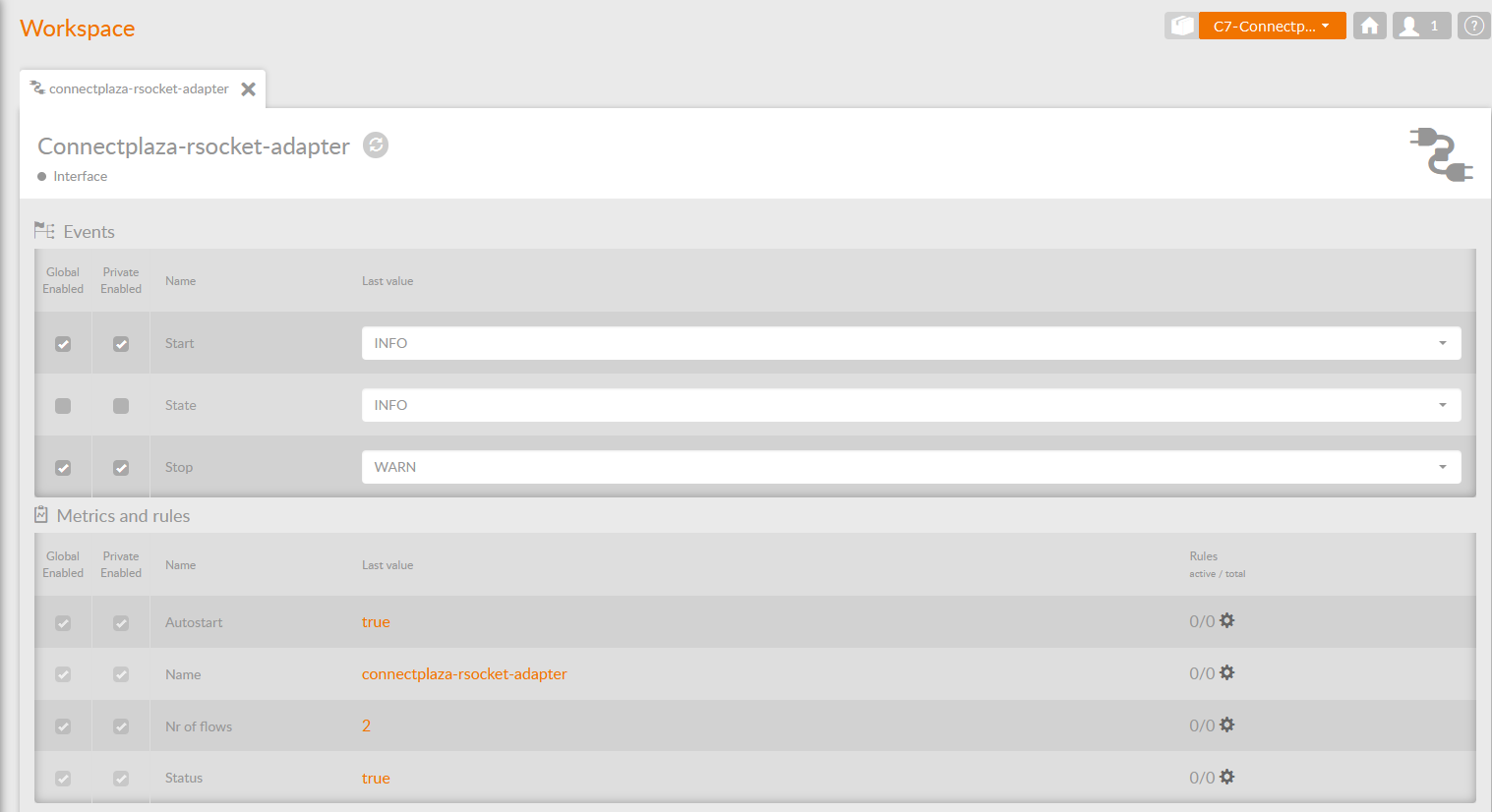

Gives you an overview of the status your interface is in. This will be show in a separate tab with the name of the interface:
The screen is also divided by the Property Types. The description of the properties here is the same as the Manage / Status screen of the ConnectAgent.
Attention: Changes to the settings are only available until you restart the ConnectPlaza Agent!
Turn off
If you select this option you turn of the selected Interface. The indications on the screen will be modified accordingly.

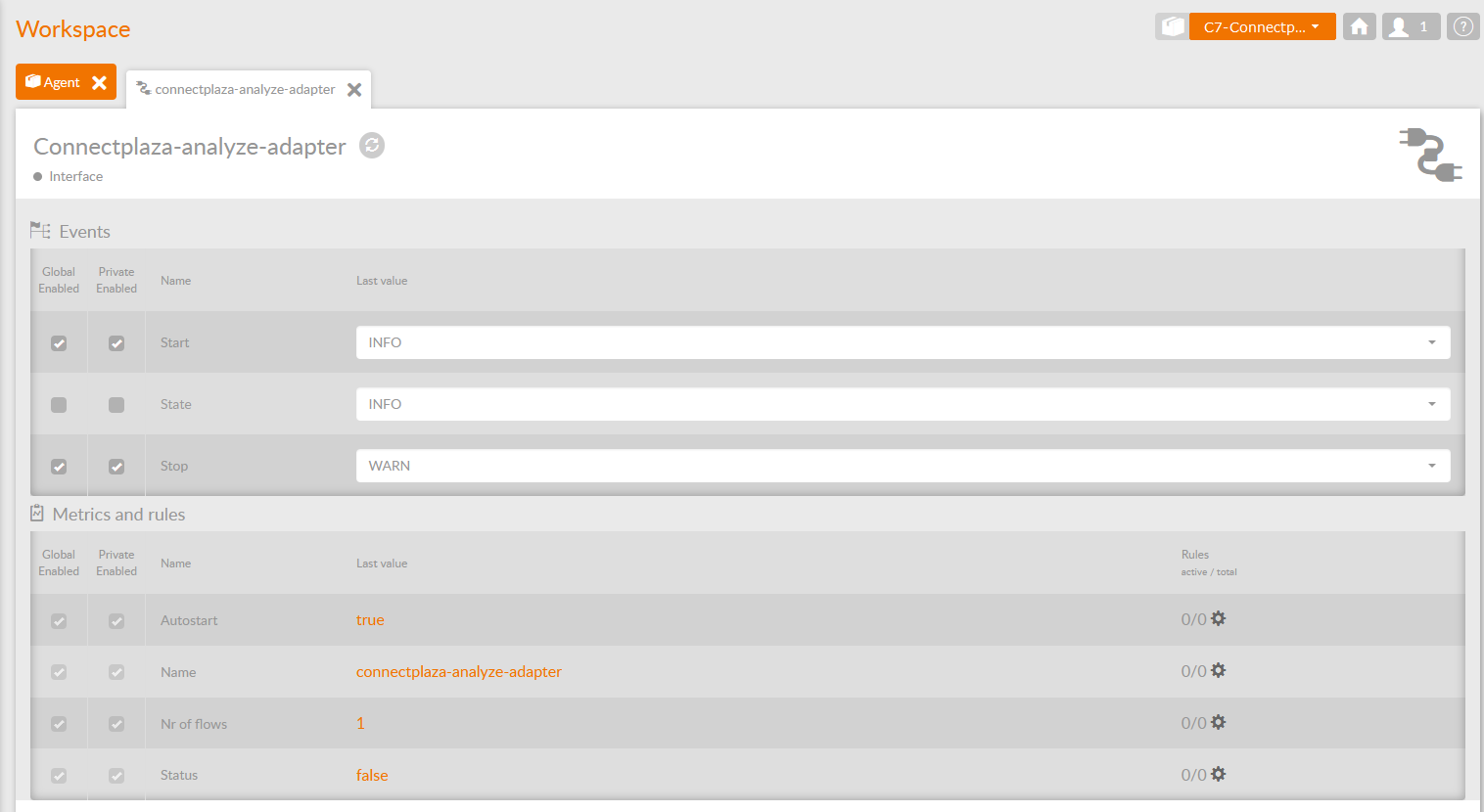

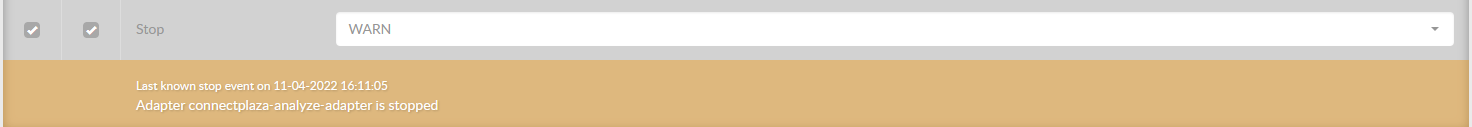

You see that the selected flow is Off Line, and the Interface has a warning indication. Also the Manage / Status indicator is now in a warning state. In the Mange / Status overview you see now the warning caused by the issue.
Attention: Changes to the settings are only available until the next restart of the ConnectPlaza Agent!

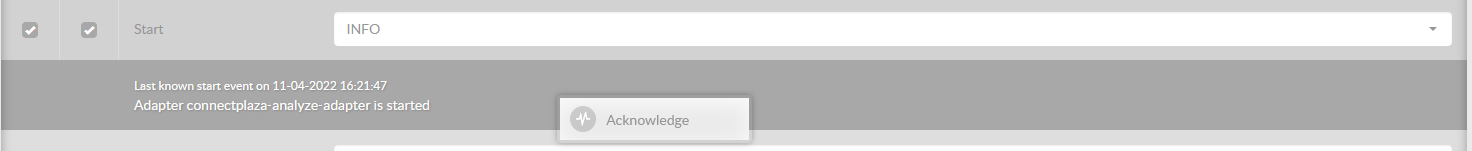

To acknowlede a status, click the rigth mousebutton and select Acknowledge.
After the acknowledgment, the message will disappear.
Flows
Open this section of the menu and you will see all the flows in this Interface, in our example this would be:

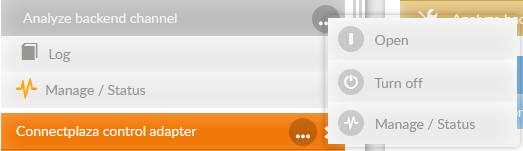

Pressing the ... button will open an options menu:
Here you can open, turn off the flow or manage the flow.
Log

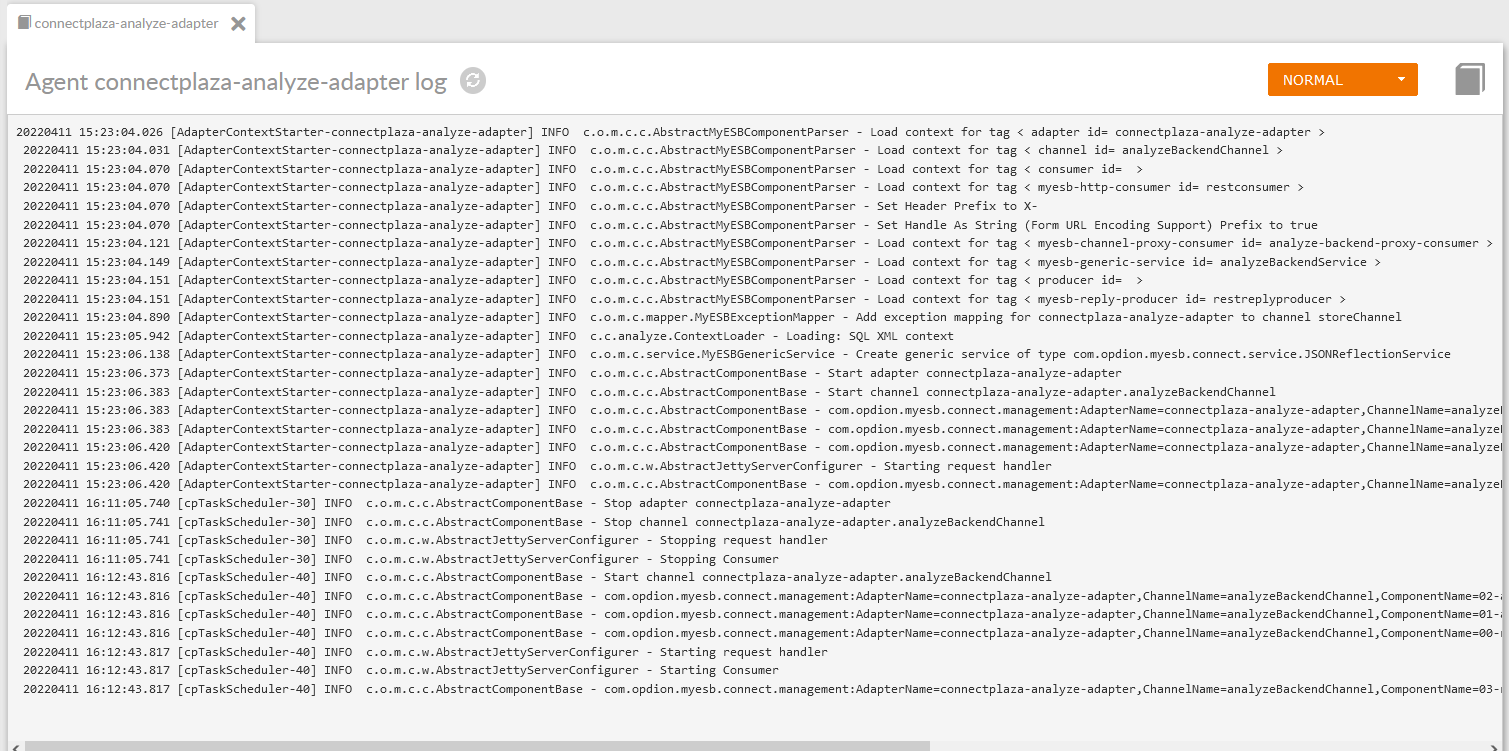

Selecting this option will get you a log file overview of the selected Interface.
This is a static view of the last part of the log from the Interface. You can refresh this view using the button.
If you need to adjust the depth of your logging, you can select the depth via the selection box.
This option is automatically set in your environment and. After refreshing your logging the new setting will be active. This action also applies to the logging via ConnectPlaza Deploy.
Attention: Changes to the settings are only available until the next restart of the ConnectPlaza Agent!
Manage / Status
Here you get an overview of the Interfaces status. You can also manage several properties within this screen:
De screen for the interface is devided into the different types. The following information shown in the sections are:
| Property | Description |
| Global Enabled | Is the property Global enabled. This means that this property send out notifications for all events with this specific property. For instance if you want an error if one your interfaces stops. If you want this for ALL your interfaces you use a global enabled property. |
| Private enabled | Is the property only available in the selected phase |
| Name | Name of the property |
| Last value |
The value of the selected property at the time of creating the document. |
|
Rules Active / Total |
This counter will give you the active rules and the total rules used by ConnectPlaza Monitor. The rules are defined withing ConnectPlaza Control. If you press the |
Attention: Changes to the settings are only available until the next restart of the ConnectPlaza Agent!
Working with more than one tab
Using more than one tab in ConnectPlaza Control is no problem, You can close the tab using the on the tab. If you right click with your mouse on one of the tabs, a menu will open:
With these options you can select to close all tabs at once, close all other tabs or just close the current tab.
Configuration management
A configuration in ConnectPlaza Control is a configuration per user. So if you and you co-worker both have a ConnectPlaza Control license, you both have a personal configuration for ConnectPlaza Control.
A configuration is created for you once you have logged in into ConnectPlaza Control. After that you can copy a configuration from a user to your onw configuration. .

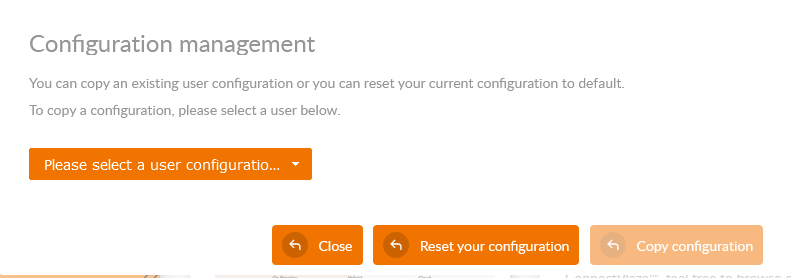

Select Configuration management:

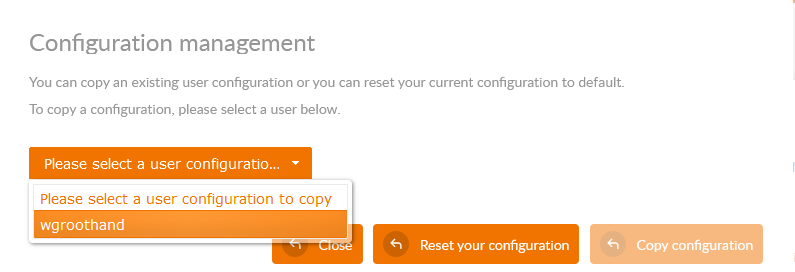

Select the user to copy your configuration from:
The configuration will be copied after you press the Copy configuration button. You will return to the main screen of ConnectPlaza Control.
