Command Line Interface

Table of Contents

    The ConnectAgent CLI

    The command line interface is a program to perform several actions on your runnint ConnectAgent. You can find your ConnectAgent Command line interface in your <ConnectPlaza installation directory>/bin directory (for Linux) or the <ConnectPlaza installation directory>\bat directory (on Windows).

    USE THIS TOOL AT YOUR OWN RISC

    Enter the following command to open help function of the CLI:

    connectcmd.bat     (Windows)
        or
    sh connectcmd.sh   (Linux)

    You see the help function execute:

    usage: connectcmd [options] <command> [arg1 arg2 ...]
     -b,--brief <arg>   Exclude additional information and error messages
     -h,--host <arg>    Connect to host
     -p,--port <arg>    Connect to port
    available commands:
     agentlogtail <number of bytes>                           Get a tail in KB of the connectplaza-agent.log file
     getbundles                                               Get current installed bundles
     getconfigurationfile <configuration file>                Get a configuration file from the connected agent
     getdatetime <interface name>                             Get the installation date and time of this interface
     geterror <interface name>                                Get the last error message for the selected interface
     getflows [interface name]                                Find all flows of the named interfaces or all flows of all interfaces
     getinterfaceloglevel <interface name>                    Get internal log level of specified interface: FULL,NORMAL,MINIMAL,TRACELOG en TRACELOGMSG
     getinterfaces                                            Get the names of all available interfaces
     getlocation <interface name>                             Get the location of this interface
     getloggers [filter]                                      Get all common loggers or loggers which starts with the filter
     getloglevel [interface name] <logger>                    Get log level of specified logger in the agent or inside an interface: INFO, DEBUG, ERROR, WARN, FATAL
     getproperties <interface name>                           Get the interface properties
     getsize <interface name>                                 Get the size of the bundle in Kilobytes
     getupdatereport <report>                                 Get the update reports
     getupdatetillversion                                     Get the latest version this connected agent will upgrade to
     install <bundle> [autostart]                             Install a new interface bundle and instantiate it if autostart != false
     interfaceflows <interface name>                          Get the flow count from an interface
     license                                                  Get license information from Connect Agent
     logtail <interface name> <number of bytes>               Get the log tail from an interface
     monitor [Bean name properties in form key=value,key=*,*] Monitor agent notifications, stop with Ctrl-C
     restart                                                  Restart a connect agent
     setinterfaceloglevel <interface name> <level>            Set internal log level for interface: FULL,NORMAL,MINIMAL,TRACELOG en TRACELOGMSG
     setloglevel [interface name] <logger> <level>            Set log level of specified logger in the agent or inside an interface: INFO, DEBUG, ERROR, WARN, FATAL
     setupdatetillversion <version>                           Set the latest version this connected agent will upgrade to
     shutdownagent                                            Terminate connected agent
     start <interface name>                                   Start an interface context if not yet started and return the state
     status <interface name>                                  Get interface state: ONLINE, OFFLINE, STARTING, STOPPING
     stop <interface name>                                    Stop an interface context if not yet stopped and return the state
     totalflows <includesystemflows>                          Get the total number of flows on the connected agent
     uninstall <bundle>                                       Stop and uninstall an interface bundle
     updatelicense <file>                                     Update the agent license with the license from file
     updatereports                                            Get all available update reports
     updates                                                  Get all available updates
     version                                                  Get the current agent version and version history in xml format



    In our examples we use an interface with the name testFTPS.

    Usage

    The CLI can be used with the following command:

    usage: connectcmd [options] <command> [arg1 arg2 ...]
     -b,--brief <arg>   Exclude additional information and error messages
     -h,--host <arg>    Connect to host
     -p,--port <arg>    Connect to port

    When using windows you will run the command connectcmd.bat

    The connection to the ConnectAgent will be made via the JMX connection.
    -h: Defaults to localhost
    -p: Defaults to the default jmx port 9876

    Commands

    agentlogtail

    connectcmd agentlogtail <number of bytes>



    Description: Get the Log tail of the connectplaza-agent

    Example:

    # connectcmd.bat agentlogtail 2500
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: agentlogtail

    Log tail from all interfaces fetching 2500 bytes:
    e)
            at com.sun.org.apache.xerces.internal.impl.XMLErrorReporter.reportError(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.xs.XMLSchemaValidator$XSIErrorReporter.reportError(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.xs.XMLSchemaValidator.reportSchemaError(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.xs.XMLSchemaValidator.processAttributes(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.xs.XMLSchemaValidator.handleStartElement(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.xs.XMLSchemaValidator.emptyElement(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.XMLNSDocumentScannerImpl.scanStartElement(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl$FragmentContentDriver.next(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.XMLDocumentScannerImpl.next(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.XMLNSDocumentScannerImpl.next(Unknown Source)
            at com.sun.org.apache.xerces.internal.impl.XMLDocumentFragmentScannerImpl.scanDocument(Unknown Source)
            at com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(Unknown Source)
            at com.sun.org.apache.xerces.internal.parsers.XML11Configuration.parse(Unknown Source)
            at com.sun.org.apache.xerces.internal.parsers.XMLParser.parse(Unknown Source)
            at com.sun.org.apache.xerces.internal.parsers.DOMParser.parse(Unknown Source)
            at com.sun.org.apache.xerces.internal.jaxp.DocumentBuilderImpl.parse(Unknown Source)
            at org.springframework.beans.factory.xml.DefaultDocumentLoader.loadDocument(DefaultDocumentLoader.java:76)
            at org.springframework.beans.factory.xml.XmlBeanDefinitionReader.doLoadDocument(XmlBeanDefinitionReader.java:429)
            at org.springframework.beans.factory.xml.XmlBeanDefinitionReader.doLoadBeanDefinitions(XmlBeanDefinitionReader.java:391)
            ... 8 common frames omitted
    20181112 15:51:00.866 [AdapterContextStarter-mailConsumerAttachment] INFO  c.opdion.myesb.agent.AdapterContext - Sending notification javax.management.Notification[source=com.opdion.myesb.agent.AdapterContext@43a4ff52][type=adaptercontext.state][message=AdapterContext not started.]
     20181112 15:51:01.054 [cpTaskScheduler-41] INFO  c.o.m.c.utils.RegisteredFileDeleter - testftps-3.4.0-20181112115657237.jar is marked as deleted.
     20181112 15:51:01.160 [cpTaskScheduler-41] INFO  c.o.m.c.utils.RegisteredFileDeleter - testftps-3.4.0-20181112115657237.jar is marked as deleted.

    With the above command you see that you get 2500 KB of the connectplaza-agent.log file.

    getbundles

    connectcmd getbundles



    Description: Get current installed bundles

    Example:

    # connectcmd.bat getbundles
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getbundles

    Found installed bundels :
      connectplaza-analyze-backend-adapter-3.4.0.jar
      connectplaza-control-adapter-3.4.0.jar
      connectplaza-deploy-adapter-3.4.6-SNAPSHOT.jar
      connectplaza-reverse-http-adapter-3.4.0.jar
      connectplaza-update-adapter-3.3.0.jar
      mailconsumerattachment-3.4.0-20180320133603887.jar

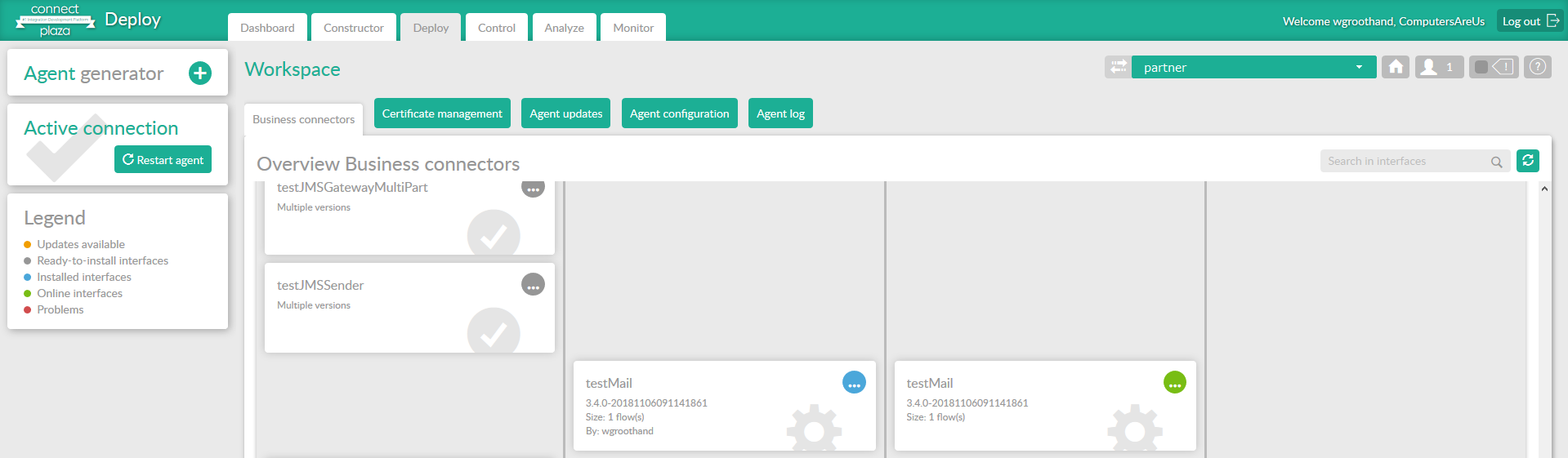

    With this command you will get an overview about all deployed bundles available on your ConnectAgent. This is not an indication that these bundles are running. You can select autostart for some of the interfaces, as you can remember.

    The .jar files are always in lowercase. So the name can differ from the interface name.

    getconfigurationfile

    connectcmd getconfigurationfile <configuration file>



    Description: Get a configuration file from the connected agent

    Example:

    # connectcmd.bat getconfigurationfile connectplaza-agent.properties
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getconfigurationfile

    Get the configuration file connectplaza-agent.properties:
    connect.mbean.server.connector.url=service:jmx:jmxmp://10.1.0.184:9876
    connect.mbean.defaultdomain=com.opdion.myesb
    connect.mbean.connectdomain=com.opdion.myesb.connect.management
    connect.mbean.sidomain=com.opdion.myesb.si
    connect.mbean.componentindex.asattribute=false
    connect.mbean.componentindex.inname=true
    connect.activemq.broker.uri=vm://localhost
    connect.activemq.broker.persistent=true
    connect.activemq.broker.systemusage.memoryusage=64mb
    connect.activemq.broker.systemusage.storeusage=10gb
    connect.activemq.broker.systemusage.tempusage=2gb
    connect.amqp.host=localhost
    connect.amqp.port=5672
    connect.amqp.username=guest
    connect.amqp.password=guest
    connect.network.interfacename=eth0
    connect.jetty.connector.host=10.1.0.184
    connect.jetty.connector.port=8088
    connect.jetty.connector.maxidletime=30000
    connect.jetty.connector.acceptors=2
    connect.jetty.sslconnector.host=10.1.0.184
    connect.jetty.sslconnector.port=8443
    connect.jetty.sslconnector.included.protocols=TLSv1,TLSv1.1,TLSv1.2
    connect.jetty.sslconnector.maxidletime=30000
    connect.jetty.sslconnector.acceptors=2
    connect.jetty.sslconnector.keystore=./context/connectpaza_keystore.jks
    connect.jetty.sslconnector.keystore.password=<set>
    connect.jetty.sslconnector.truststore=./context/connectplaza_truststore.jks
    connect.jetty.sslconnector.truststore.password=<set>
    connect.taskexecutor.poolsize=5-40
    connect.taskexecutor.queue.capacity=20000
    connect.taskscheduler.poolsize=50
    connect.globalpoller.fixed-delay=50       // poller will poll next queue after this time ( or repeatedly all queues after this time?)
    connect.globalpoller.receive-timeout=500  // poller thread will wait this time for message to arrive on polled queue, after that thread will return to pool
    connectplaza.flow.taskexecutor.queue.capacity=200
    connectplaza.flow.taskexecutor.poolsize=20
    connect.license.owner=dummy
    connect.license.key=NUP5-19YX-AJMY-JS2V-523T
    connect.license.cloud=true
    connect.cloudserver.uri=https://test.connectplaza.com:8443
    connect.adapters.donotstart=
    connect.http.proxyHost=
    connect.http.proxyPort=
    connect.http.proxyUser=
    connect.http.proxyPassword=
    connect.https.proxyHost=
    connect.https.proxyPort=
    connect.https.proxyUser=
    connect.https.proxyPassword=
    connect.analyze.connectionfactory=connectionFactory
    connect.analyze.queue=queue.analyze
    connect.connectionfactory.name=activeMQFactory
    connect.ssl.ca.truststore=true
    connect.lfs.timeout=3600
    connect.analyze.storagetype=SQL
    connect.adapter.myesbcommon.storechannel.storedirectory=./temp/storechannel
    connect.adapter.myesbcommon.mailchannel.smtp.host=test
    connect.adapter.myesbcommon.mailchannel.smtp.port=25
    connect.adapter.myesbcommon.mailchannel.smtp.username=test
    connect.adapter.myesbcommon.mailchannel.smtp.password=test
    connect.adapter.myesbcommon.mailchannel.smtp.to=test
    connect.adapter.myesbcommon.mailchannel.smtp.from=test
    connect.adapter.myesbcommon.mailchannel.smtp.subject=Exception Report
    connect.adapter.myesbcommon.mailchannel.smtp.starttls=false
    connect.adapter.myesbcommon.mailchannel.smtp.maildebug=false

    With this command you will get an overview from the files withing your conf directory. The following input can be given as an argument for this command:

    Property files:

    • connectplaza-agent.properties
    • connectplaza-analyze.properties
    • connectplaza-security.properties

    Logback files (settings for you logging, concerning your interfaces). These are file which have your logging settings. Every interface you create will have a file starting with logback, followed by an _ and you interface name. The extension is always .xml. For instance, for our testFTP interface, it will be logback_testFTPS.xml. Let's try this:

    # connectcmd.bat getconfigurationfile logback_testFTPS.xml
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getconfigurationfile

    Get the configuration file logback_testFTPS.xml:
    <?xml version="1.0" encoding="UTF-8"?>
    <appender name="dailyRollingFileAppender" class="com.opdion.myesb.logback.SpecifiedHourRollingFileAppender">
    <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
    <!-- keep 30 days' worth of history (30*24=720 hours)-->
    <logger name="com.opdion.myesb.connect" additivity="true" level="INFO"/>
    <logger name="com.opdion.myesb.connect.service" additivity="true" level="INFO"/>
    <logger name="com.opdion.myesb.connect.log" additivity="true" level="INFO"/>
    <level value="WARN" />
    <appender-ref ref="dailyRollingFileAppender" />

    There is always a default setting for you logfiles. You can find this in the file logback.xml.

    getdatetime

    connectcmd getdatetime <interface name>



    Description: Get the installation date and time of this interface

    Example:

    # connectcmd.bat getdatetime testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getdatetime

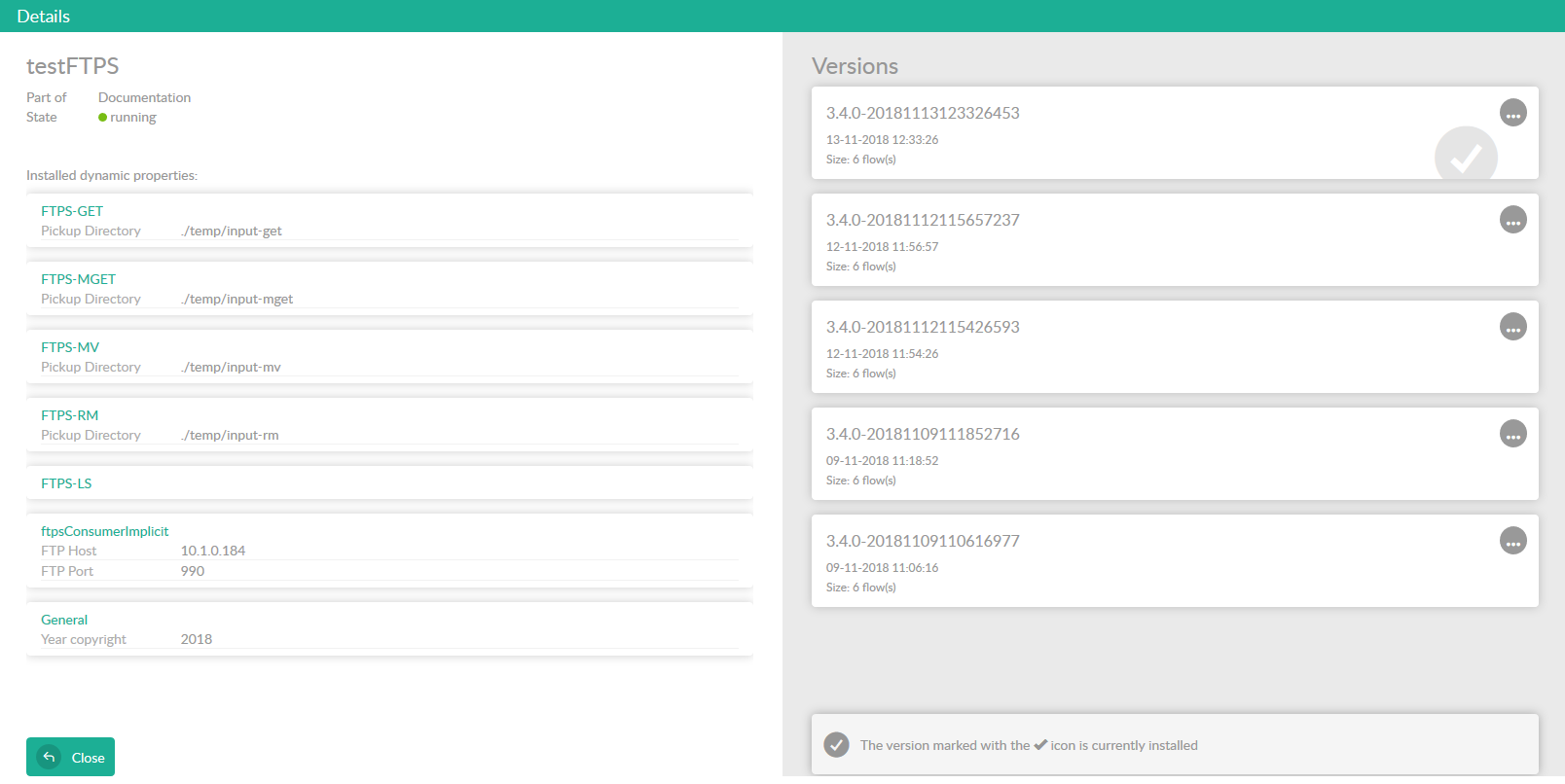

    Interface installation date:
    2018/11/12 16:09:56

    Whit this command you can get the installtion date of this interface.

    geterror

    connectcmd geterror <interface name>



    Description: Get the last error message raised for the selected interface

    Example:

    # connectcmd.bat geterror testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: geterror

    Last error message not set

    With this command you retrieve the last error message for a selected interface. In this case no errors were raised.

    getflows

    commandcmd getflows [interface name]



    Description:  Find all flows of the named interfaces or all flows of all interfaces

    Example:

    # connectcmd.bat getflows testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getflows

    Searching flows on interface testFTPS
    Found flows:
       testFTPS.FTPS-RM
       testFTPS.FTPS-MGET
       testFTPS.ftpsConsumerImplicit
       testFTPS.FTPS-GET
       testFTPS.FTPS-LS
       testFTPS.FTPS-MV

    With this command, you get an overview of all the flows in the selected interface.

    getinterfaceloglevel

    commandcmd getinterfaceloglevel <interface name>



    Description: Get internal log level of specified interface: FULL,NORMAL,MINIMAL,TRACELOG en TRACELOGMSG

    Example:

    # connectcmd.bat getinterfaceloglevel testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getinterfaceloglevel

    Log level of interface testFTPS: NORMAL

    With this command you retrieve the log level setting of your selected interface.

    getinterfaces

    commandcmd getinterfaces



    Description: Get the names of all available interfaces

    Example:

    # connectcmd.bat getinterfaces
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getinterfaces

    Found interfaces:
     connectplaza-license-adapter
     connectplaza-analyze-backend-adapter
     connectplaza-reverse-http-adapter
     connectplaza-deploy-adapter
     connectplaza-update-adapter
     mailConsumerAttachment
     testFTPS
     connectplaza-control-adapter

    With this command you will get an overview of all the interfaces installed on your ConnectAgent.

    getlocation

    commandcmd getlocation <interface name>



    Description: Get the location of this interface

    Example:

    # connectcmd.bat getlocation testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getlocation

    Interface location:
    E:\data\agent-testomgeving-350\connectplaza-agent\adapters\testftps-3.4.0-20181112115657237.jar

    With this command you can retrieve the location of your installed bundle file on your system.

    getloggers

    commandcmd getloggers [filter]



    Description: Get all common loggers or loggers which starts with the filter

    Example:

    # connectcmd.bat getloggers com.connectplaza
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getloggers

    Found loggers:
     com.connectplaza
     com.connectplaza.deploy
     com.connectplaza.deploy.certificates
     com.connectplaza.deploy.certificates.CertificateUtils
     com.connectplaza.deploy.support
     com.connectplaza.deploy.support.ConnectPlazaBundle
     com.connectplaza.lfs
     com.connectplaza.lfs.LargeFileSupportStore
     com.connectplaza.thread
     com.connectplaza.thread.ConnectPlazaThreadCreator

    With this command you can get all the possible loggers from the system. You will probably never use this without help from support.

    getloglevel

    commandcmd  getloglevel [interface name] <logger>



    Description: Get log level of specified logger in the agent or inside an interface: INFO, DEBUG, ERROR, WARN, FATAL

    Example:

    # connectcmd.bat getloglevel testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getloglevel

    Log level of logger testFTPS: ERROR

    With this command you can retrieve the actual log level of the selected interface.

    getproperties

    commandcmd getproperties <interface name>



    Description: Get the interface properties

    Example:

    # connectcmd.bat getproperties testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getproperties

    Interface properties:
    testFTPS.FTPS-MGET.file-pickup-1.directory=./temp/input-mget
    testFTPS.ftpsConsumerImplicit.ftp-pickup-1.port=990
    testFTPS.FTPS-MV.file-pickup-1.directory=./temp/input-mv
    testFTPS.ftpsConsumerImplicit.ftp-pickup-1.host=10.1.0.184
    testFTPS.FTPS-RM.file-pickup-1.directory=./temp/input-rm
    testFTPS.FTPS-GET.file-pickup-1.directory=./temp/input-get

    With this command you can retrieve all the dynamic properties set in your interface. These include the global properties. After building the interface, there is no way to separate the global properties from the local dynamic properties. In the bundle they are all the same. See next example, we have a global property with the name Year copyright and a value of 2018.

    If we run the getproperties command again, look at the properties which are returned.

    # connectcmd.bat getproperties testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getproperties

    Interface properties:
    testFTPS.FTPS-MGET.file-pickup-1.directory=./temp/input-mget
    testFTPS.ftpsConsumerImplicit.ftp-pickup-1.port=990
    testFTPS.FTPS-MV.file-pickup-1.directory=./temp/input-mv
    YearCopyright=2018
    testFTPS.ftpsConsumerImplicit.ftp-pickup-1.host=10.1.0.184
    testFTPS.FTPS-RM.file-pickup-1.directory=./temp/input-rm
    testFTPS.FTPS-GET.file-pickup-1.directory=./temp/input-get

    You can see that between the properties there is the YearCopyright property with a value of 2018.

    getsize

    commandcmd getsize <interface name>



    Description: Get the size of the bundle in Kilobytes

    Example:

    # connectcmd.bat getsize testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getsize

    Bundle size:
    3461 KB

    Wit this command you can retrieve the size in KB of the selected interface bundle. The .jar that is.

    getupdatereport

    commandcmd getupdatereport <report>



    Description: Get the update reports

    Example:

    # connectcmd.bat getupdatereport report.txt
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getupdatereport

    Get update report:
    This is a report update file for test purposes

    With this command you can retrieve a selected update report. This is a text file. To know the name of this text file, you can first run the command updatereports which returns all the available updatereports.

    getupdatetillversion

    commandcmd getupdatetillversion



    Description: Get the latest version this connected agent will upgrade to

    Example:

    # connectcmd.bat getupdatetillversion
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: getupdatetillversion

    Update till version:
    3.4.1-SNAPSHOT

    With this command you can get the version number to update to. In our example this is 3.4.1-snaphot. If version 3.4.2 was released, the ConnectAgent will not update itself. It is important to check your updatetillversion settings in your environment. Keep in mind that releases for ConnectPlaza, preferably, must be tested with your own environment, before rolling out this release on your production environment. A preferred setting for your production environment is usually OFF.

    install

    commandcmd install <bundle> [autostart]



    Description:  Install a new interface bundle and instantiate it if autostart != false

    Example:

    # connectcmd.bat install c:\tmp\testmail-3.4.0-20181106091141861.jar
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: install

    Install interface bundle c:\tmp\testmail-3.4.0-20181106091141861.jar
    Interface installed in context: testMail
    Start interface context testMail
    2018-11-13T09:26:43.816 Notification: State changed OldValue:OFFLINE NewValue:STARTING
    2018-11-13T09:26:44.217 Notification: State changed OldValue:STARTING NewValue:ONLINE
    2018-11-13T09:26:44.223 Notification: AdapterContext is started
    State ONLINE
    Configurations successfully started

    With this command you can install a bundle in your ConnectAgent. After installation, this interface will be visible in your Deploy frontend.

    We do not prefer you use this way of uploading bundles to the ConnectAgent. If you want to upload bundles to the ConnectAgent use the Deploy frontend for this.

    interfaceflows

    commandcmd interfaceflows <interface name>



    Description: Get the flow count from an interface

    Example:

    # connectcmd.bat interfaceflows testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: interfaceflows

    Interface flows count:
    6

    With this command you can retrieve the number of flows in you interface. This is important, because this number can have an effect on your license.

    license

    commandcmd license



    Description: Get license information from Connect Agent

    Example:

    # connectcmd.bat license
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: license

    License information: cloud license AA11-BB22-CC33-DD44-EE55

    With this command you can retrieve you ConnectPlaza licensekey.

    logtail

    commandcmd logtail <interface name> <number of bytes>



    Description: Get the log tail from an interface

    Example:

    connectcmd.bat logtail testFTPS 2500
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: logtail

    Log tail of testFTPS fetching 2500 bytes:
    ingEndpoint.doPoll(AbstractPollingEndpoint.java:224)
            at org.springframework.integration.endpoint.AbstractPollingEndpoint.access$000(AbstractPollingEndpoint.java:57)
            at org.springframework.integration.endpoint.AbstractPollingEndpoint$1.call(AbstractPollingEndpoint.java:176)
            at org.springframework.integration.endpoint.AbstractPollingEndpoint$1.call(AbstractPollingEndpoint.java:173)
            at org.springframework.integration.endpoint.AbstractPollingEndpoint$Poller$1.run(AbstractPollingEndpoint.java:330)
            at org.springframework.integration.util.ErrorHandlingTaskExecutor$1.run(ErrorHandlingTaskExecutor.java:55)
            at java.util.concurrent.ThreadPoolExecutor.runWorker(Unknown Source)
            at java.util.concurrent.ThreadPoolExecutor$Worker.run(Unknown Source)
            at java.lang.Thread.run(Unknown Source)
    Caused by: org.springframework.messaging.MessagingException: Failed to execute on session; nested exception is java.io.FileNotFoundException: E:\data\agent-testomgeving-350\connectplaza-agent\.\temp\ftp\testFTPS_ftpsConsumerImplicit_ftp-pickup-1\Irado.sql.DOWNLOAD (The process cannot access the file because it is being used by another process)
            at org.springframework.integration.file.remote.RemoteFileTemplate.execute(RemoteFileTemplate.java:419)
            at org.springframework.integration.file.remote.synchronizer.AbstractInboundFileSynchronizer.synchronizeToLocalDirectory(AbstractInboundFileSynchronizer.java:223)
            ... 13 common frames omitted
    Caused by: java.io.FileNotFoundException: E:\data\agent-testomgeving-350\connectplaza-agent\.\temp\ftp\testFTPS_ftpsConsumerImplicit_ftp-pickup-1\Irado.sql.DOWNLOAD (The process cannot access the file because it is being used by another process)
            at java.io.FileOutputStream.open0(Native Method)
            at java.io.FileOutputStream.open(Unknown Source)
            at java.io.FileOutputStream.<init>(Unknown Source)
            at java.io.FileOutputStream.<init>(Unknown Source)
            at org.springframework.integration.file.remote.synchronizer.AbstractInboundFileSynchronizer.copyFileToLocalDirectory(AbstractInboundFileSynchronizer.java:286)
            at org.springframework.integration.file.remote.synchronizer.AbstractInboundFileSynchronizer$1.doInSession(AbstractInboundFileSynchronizer.java:234)
            at org.springframework.integration.file.remote.synchronizer.AbstractInboundFileSynchronizer$1.doInSession(AbstractInboundFileSynchronizer.java:223)
            at org.springframework.integration.file.remote.RemoteFileTemplate.execute(RemoteFileTemplate.java:410)
            ... 14 common frames omitted

    With this command you can get a tail of the logfile of the selected interface. You can select the number of KB you want to retrieve.

    monitor

    commandcmd monitor [Bean name properties in form key=value,key=*,*]



    Description: Monitor agent notifications, stop with Ctrl-C

    restart

    commandcmd restart



    Description: Restart a connect agent

    Example:

    # connectcmd.bat restart
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: restart

    You can restart your ConnectAgent with this command


    setinterfaceloglevel

    commandcmd setinterfaceloglevel <interface name> <level>



    Description: Set internal log level for interface: FULL,NORMAL,MINIMAL,TRACELOG en TRACELOGMSG

    Example:

    # connectcmd.bat setinterfaceloglevel testFTPS FULL
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: setinterfaceloglevel

    Log level of interface testFTPS changed from NORMAL to FULL

    With this command you can instantly set the loglevel of your interface.

    setloglevel

    commandcmd setloglevel [interface name] <logger> <level>



    Description: Set log level of specified logger in the agent or inside an interface: INFO, DEBUG, ERROR, WARN, FATAL

    Example:

    # connectcmd.bat setloglevel com.connectplaza INFO
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: setloglevel

    Log level of logger com.connectplaza changed from WARN to INFO

    With this command you can set the log level for you loggers. You can retrieve the loggers with the getloggers command. Do not use this command without support of ConnectPlaza employees.

    setupdatetillversion

    commandcmd setupdatetillversion <version>



    Description: Set the latest version this connected agent will upgrade to

    Example:

    # connectcmd.bat setupdatetillversion 3.5.0-RELEASE
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: setupdatetillversion

    Setting update till version: 3.5.0-RELEASE

    With this command you can set the requested update till version level of your connectAgent. If you want to reset the update till version number, just set the version to None.

    shutdownagent

    commandcmd shutdownagent



    Description: Terminate connected agent

    Example:

    # connectcmd.bat shutdownagent
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: shutdownagent

    Agent shutting down...

    With this command you can shutdown your ConnectAgent.

    start

    commandcmd start <interface name>



    Description:  Start an interface context if not yet started and return the state

    Example:

    # connectcmd.bat start testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: start

    2018-11-13T09:52:39.467 Notification: State changed OldValue:OFFLINE NewValue:STARTING
    2018-11-13T09:52:40.198 Notification: State changed OldValue:STARTING NewValue:ONLINE
    2018-11-13T09:52:40.206 Notification: AdapterContext is started
    State ONLINE
    Configurations successfully started

    With this command you can start a specific interface in your configuration.

    status

    commandcmd status <interface name>



    Description: Get interface state: ONLINE, OFFLINE, STARTING, STOPPING

    Example:

    # connectcmd.bat status testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: status

    ConnectAgent state: ONLINE

    With this command you can retrieve the status of the selected interface.

    stop

    commandcmd stop <interface name>



    Description: Stop an interface context if not yet stopped and return the state

    Example:

    # connectcmd.bat stop testFTPS
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: stop

    2018-11-13T09:51:50.750 Notification: State changed OldValue:ONLINE NewValue:STOPPING
    2018-11-13T09:51:50.867 Notification: State changed OldValue:STOPPING NewValue:OFFLINE
    2018-11-13T09:51:50.869 Notification: AdapterContext is stopped
    State OFFLINE
    Configurations successfully stopped

    With this command you can stop a specific interface in your configuration.

    totalflows

    commandcmd totalflows <includesystemflows>



    Description: Get the total number of flows on the connected agent

    Example:

    Not yet implemented


    uninstall

     uninstall <bundle>



    Description: Stop and uninstall an interface bundle

    Example:

    # connectcmd.bat uninstall testmail-3.4.0-20181106091141861.jar
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: uninstall

    Uninstall interface bundle testmail-3.4.0-20181106091141861.jar

    With this command you can uninstall a bundle from you ConnectAgent. To get the correct bundle name you can use the getbundles command to get an overview of the installed bundles. This is not the prefered way to uninstall a bundle from you ConnectAgent. The prefered way is to use your Deploy frontend to archieve the uninstall of interfaces.

    updatelicense

    commandcmd updatelicense <file>



    Description: Update the agent license with the license from file. This is only applicable if you run a ConnectAgent which is not connected to the internet. This is not very likely, but in some cases it is. Just upload the license.lic file send to you by ConnectPlaza. It will replace the old licensefile.

    updatereports

    commandcmd updatereports



    Description: Get all available update reports

    Example:

    # connectcmd.bat updatereports
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: updatereports

    Update reports:
    report.txt

    With this command you get an overview of all the update reports on you system, concerning your ConnectAgent.

    updates

    commandcmd updates



    Description: Get all available updates

    Example:

    # connectcmd.bat updates
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: updates

    Available updates:
    No updates available

    With this command you will get an overview of all the available updates ready for you ConnectAgent. Check the updatetillversion setting, to see if these updates will be implemented.

    version

    commandcmd version



    Description: Get the current agent version and version history in xml format

    Example:

    connectcmd.bat version
    service:jmx:jmxmp://localhost:9876
    ConnectPlaza Command Line Interface Tool v3.4.1-SNAPSHOT
    Copyright ConnectPlaza.com 2012-2018

    Connected to localhost:9876
    Executing command: version

    Agent version information :
    <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
    <versioning>
        <currentVersion>
            <versionName>3.4.1-SNAPSHOT</versionName>
            <installDate>2018-11-01 00:00:00</installDate>
         </currentVersion>
    </versioning>


    With this command you get an overview of the license history file.


    Copyright © 2019 ConnectPlaza.   For pricing, account management and more go to https://www.connectplaza.com

    About Connectplaza

    Si components version:

    Lorem ipsum delore set

    Lorem ipsum delore set

    Window size is not optimal. Please enlarge for optimal experience

    No connection

    No response from the server. This window will automaticly disappear by an valid connection
