MQTT-Listener

Table of Contents

    MQTT-Listener

    MQTT Listener can be used to subscribe to a topic to get messages from a MQTT Broker.

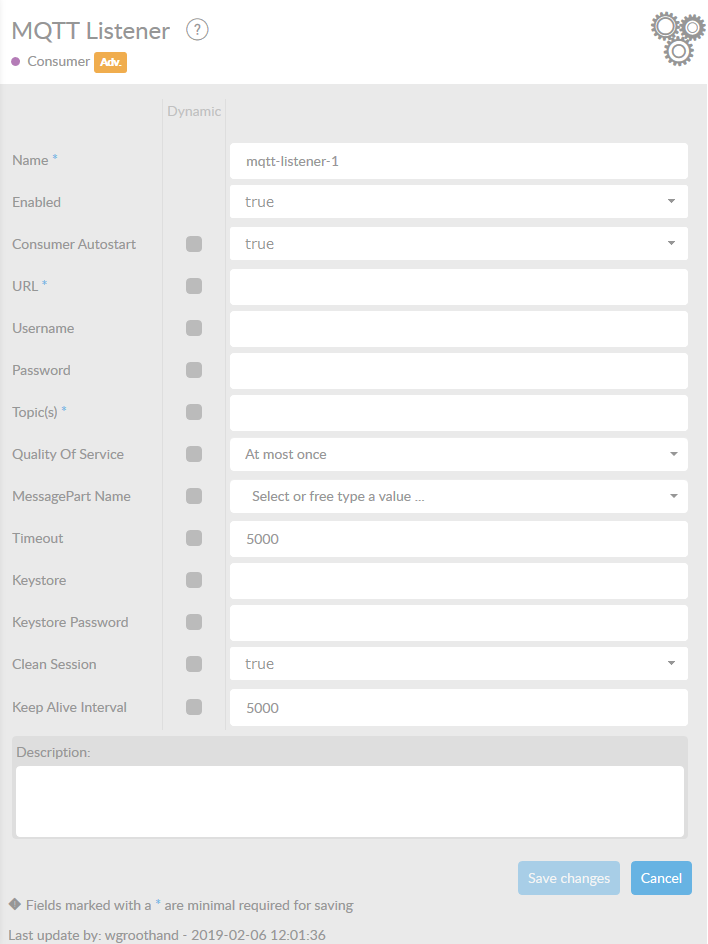

    In the table below, you will find an explanation about these properties. All attributes with a ‘*’ are mandatory.

    Attribute

    Description

    Name*

    Id of the component

    Enabled

    Check this box if you want this consumer to be enabled.

    Consumer Autostart

    Consumer will be started at startup of the interface

    URL*

    URL to connect to the broker. The chosen URL determines whether the connection should be encrypted or not. The consumer will use the default ConnectPlaza truststore. The URL must have the following format: protocol://hostname:port, where protocol should be either ssl or tcp

    Username

    Client username to connect to the broker.

    Password

    Client password to connect to the broker.

    Topic(s)*

    The topic(s) to subsribe to. Multiple topics must be comma delimited.

    Quality of Service

    A comma delimited list of QoS values. Can be a single value that is applied to all topics, or a value for each topic (in which case the lists must the same length). Default: 0.

    MessagePart

    Name of the MessagePart in a ConnectMessage where the content of the message is being stored.

    Timeout

    Time-out in miliseconds. It only applies if the channel might block.

    Keystore

    Name of the keystore file to use for client authentication. If the keystore file is not on the classpath the name should be preceded by file:. Default: no keystore will be used.

    Keystore Password

    Password of the keystore for client authentication.

    Clean Session

    Sets whether the client and server should remember state across restarts and reconnects.

    Keep Alive Interval

    The keep alive interval specifies the maximum amount of time in seconds that broker and client can be connected without sending a message.

    Description

    Description of the specific consumer. This is for documentation purposes.

    Enable SSL

    When you enable SSL, you need to add some extra information. This will look like this:

    Attribute

    Description

    Certificate Alias in Keystore

    Set the certificate alias for the selected certificate. Should exist in defined keystore.

    Key Password

    Password for the certificate key.

    Keystore Location

    The location of the keystore. Should be a path to the keystore JKS file.

    Keystore Password

    Password of the keystore.

    Advanced options

    Attribute Description
    Client ID A unique client id to connect to the broker. Default: "interfacename.flowname.componentname.clientid"
