Monitor

ConnectPlaza Monitor

The ConnectPlaza Monitor is a complementary product for Control. The metrics you can define in control are handled by ConnectPlaza Monitor.

If you have a license for ConnectPlaza Control, you can access the monitor via the url: https://www.connectplaza.com/monitor/

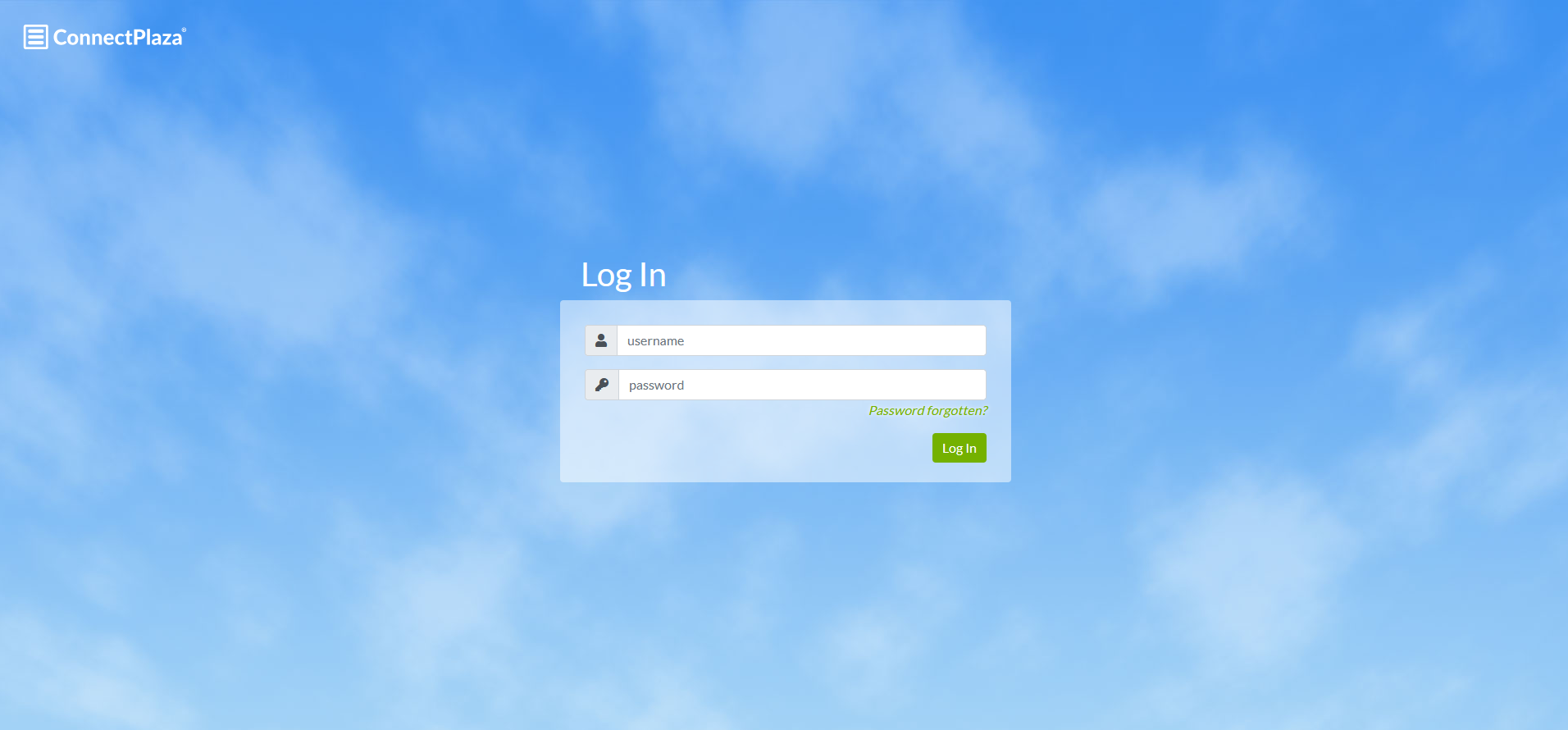

If you are not logged into you monitor you will see the login screen.

Type your username and password and press the button.

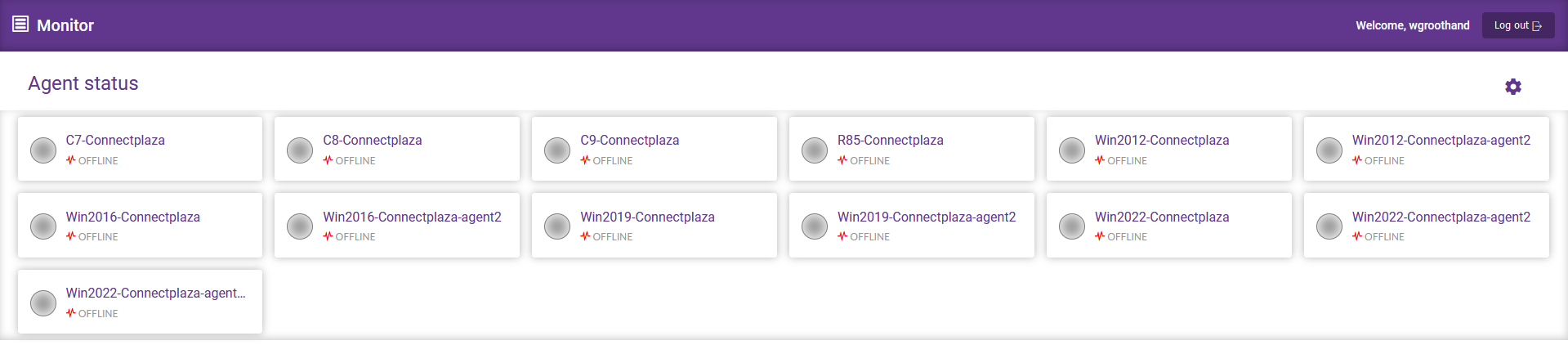

When logged in, you will see the following monitor screen with all your ConnectPlaza Agents.

In this example all the ConnectPlaza Agents are off line. You can access ConnectPlaza Monitor at all time, but to activate the metrics to show up in ConnectPlaza Monitor, you have to log in once into you ConnectPlaza Control environment. Once you have done that you configuration is active and ConnectPlaza Monitor will react on the metrics you have defined in ConnectPlaza Control.

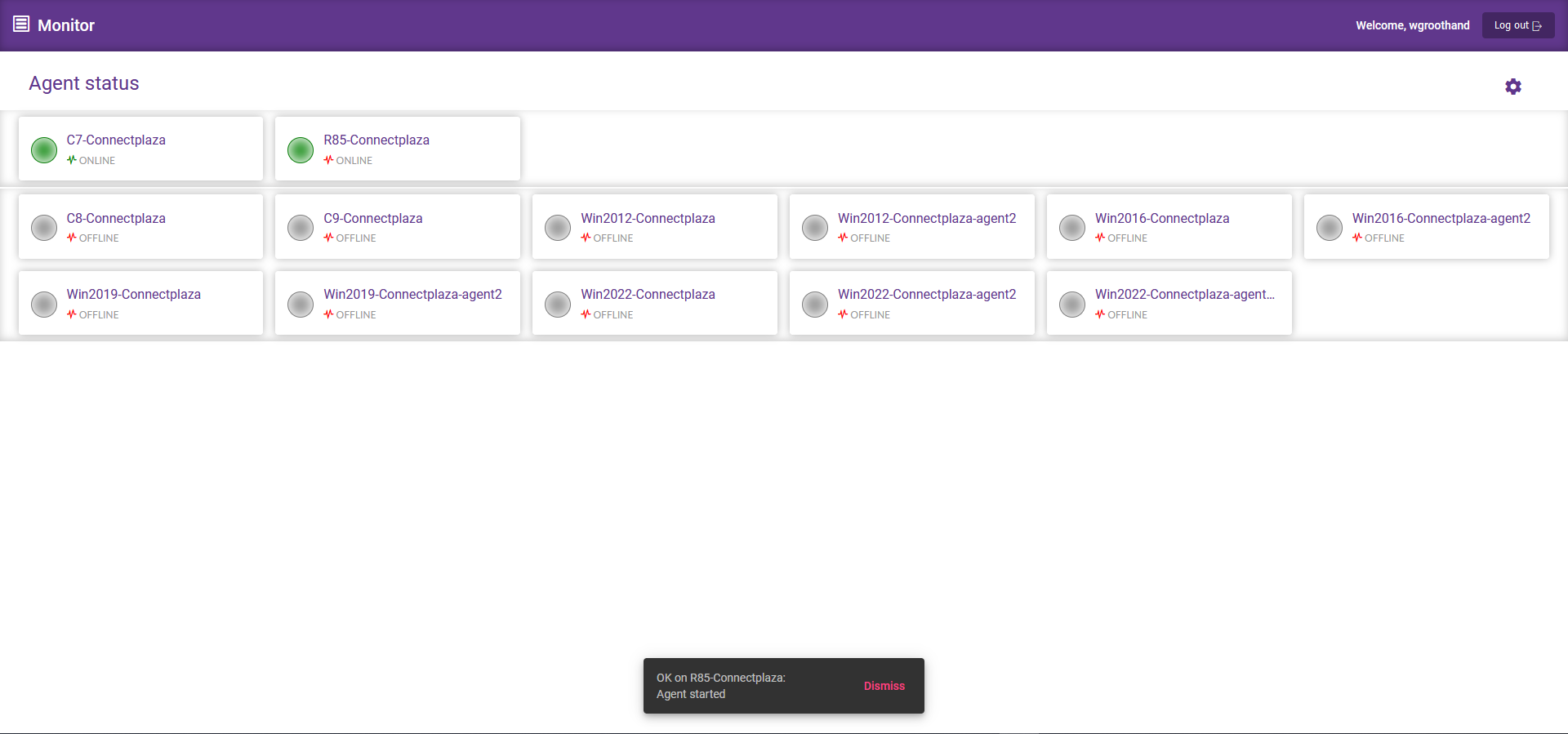

As we start up some of the ConnectPlaza Agents you will see them coming on line. Every minute (default) the agents are checked for their running status.

The message at the bottom of the screen indicates a new notification has come in. This will be shown a few seconds and then it will disappear. You see two agents are on line.

As we look closer to the displayed indicator for the agent there is some explanation needed.

Indicator	Description
	Status of the ConnectPlaza Agent. This can be the following colours: Green --> All is well Yellow --> Warnings received Red --> Errors encountered Grey --> ConnectPlaza Agent is Off line
	Heartbeat received. If this is green, a heartbeat is recieved in the set period of time a heartbeat must be recieved by the ConnectPlaza Agent. If this is not the case, this icon will be red.
	Name of the ConnectPlaza Agent.
	Status of the ConnectPlaza Agent. The following statusus are available: ONLINE OFFLINE WARN ERROR
	This opens a menu with, for now, only one option. Acknowledge all. By selecting this option, all messages will be acknowledged and all messages are reset.

If the status of your ConnectPlaza Agent is something other then ONLINE and the colour is not green,

you can check the details of the messages by clicking on the status button.

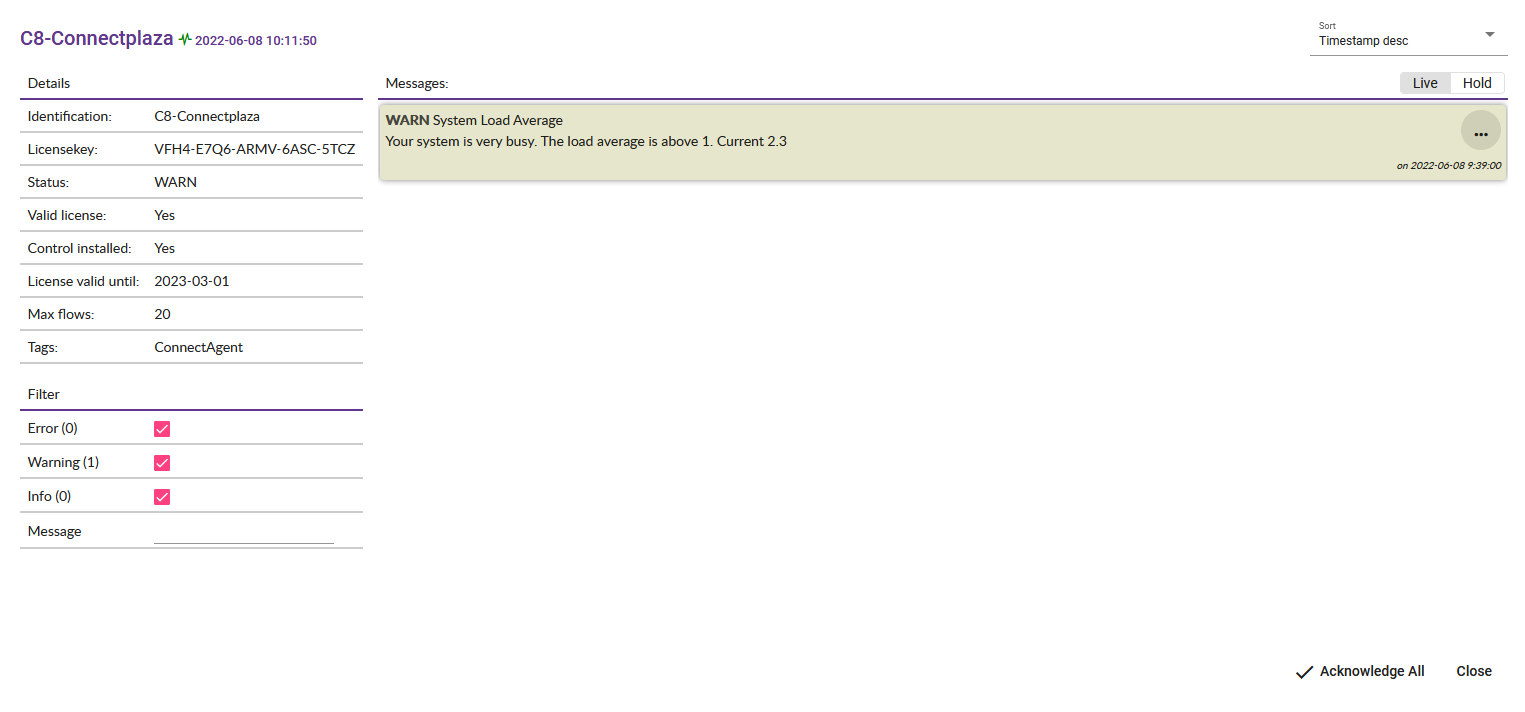

The following details are found on this screen:

Field	Description
DETAILS
- Identification	Your ConnectPlaza Agent identification name.
- Licensekey	The license key of this ConnectPlaza Agent.
- Status	The current status of your ConnectPlaza Agent.
- Valid license	Indication if your last license check is valid for this ConnectPlaza Agent.
- Control installed	Indication if your Control Interface is installed.
- License valid until	The date your ConnectPlaza Agent License is valid until.
- Max flows	Maximum number of flows your ConnectPlaza Agent may run.
- Tags	Tags for this ConnectPlaza Agent.

Filter
- Error (n)	Selection of errors in the messages list. N = Number of errors in the messages list.
- Warning(n)	Selection of warnings in the messages list. N = Number of warnings in the messages list.
- Info (n)	Selection of info messages in the messages list. N = Number of INFO messages in the messages list.
- Message	Filter to filter out the message you want. Type a text you want to filter on.

Messages
- Message bar	This returns the message. There can be more than one message in the message list. The message will disappear if you Acknowledge the message. You can do this by clicking the .

Header of the screen
	Name, heartbeat and timestamp of the last heartbeat,
- Sort	Sort the messages in one of the following orders:
	If this indicator is Live you have a live view of all the messages for the current ConnectPlaza Agent. You can set the messages on Hold by pressing Hold. . At the end you see a number. This is the number of minutes the Hold is activated.
	Acknowledge all messages on this detail screen. The indicator will turn green again.
	Close this detail screen.
